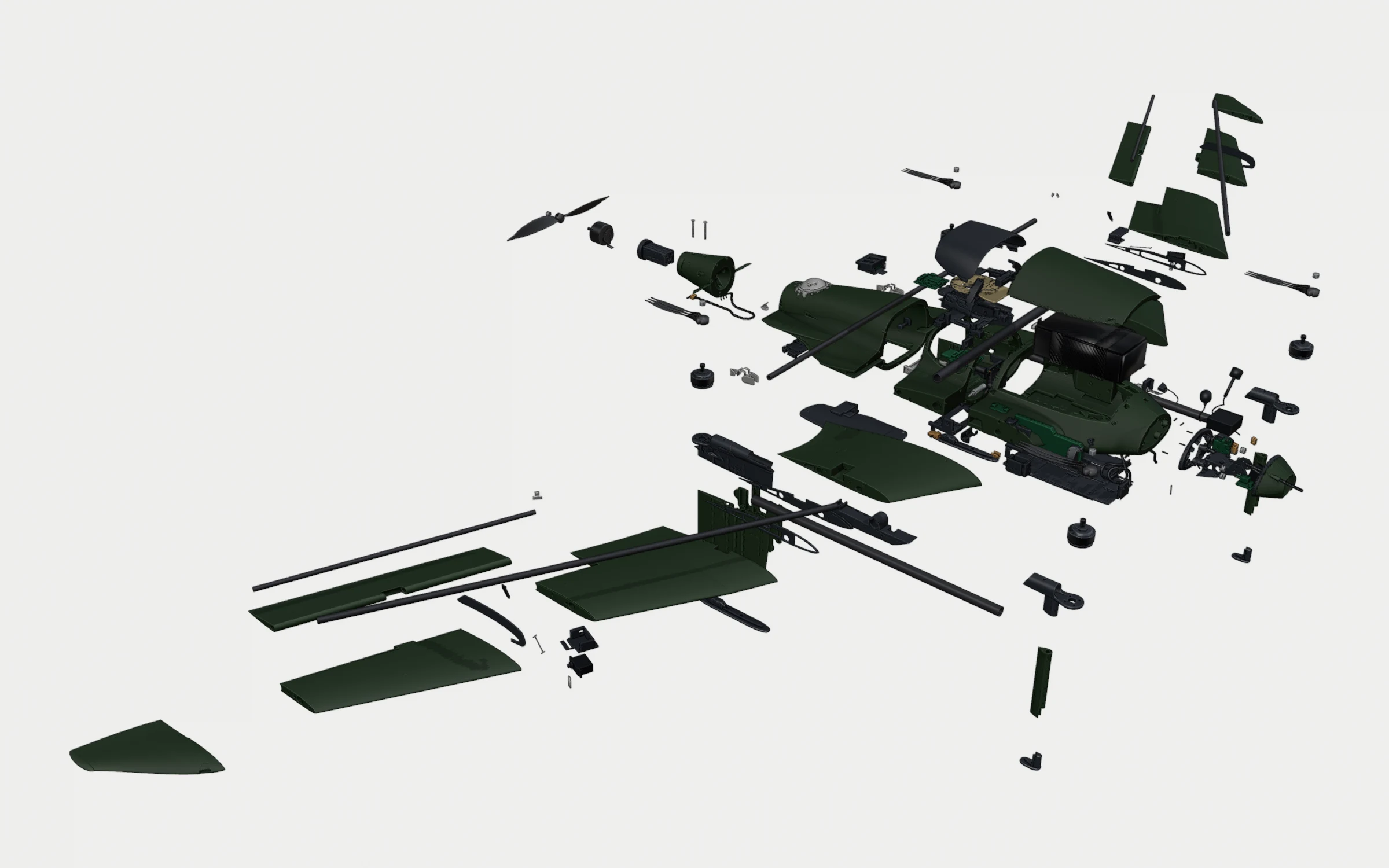

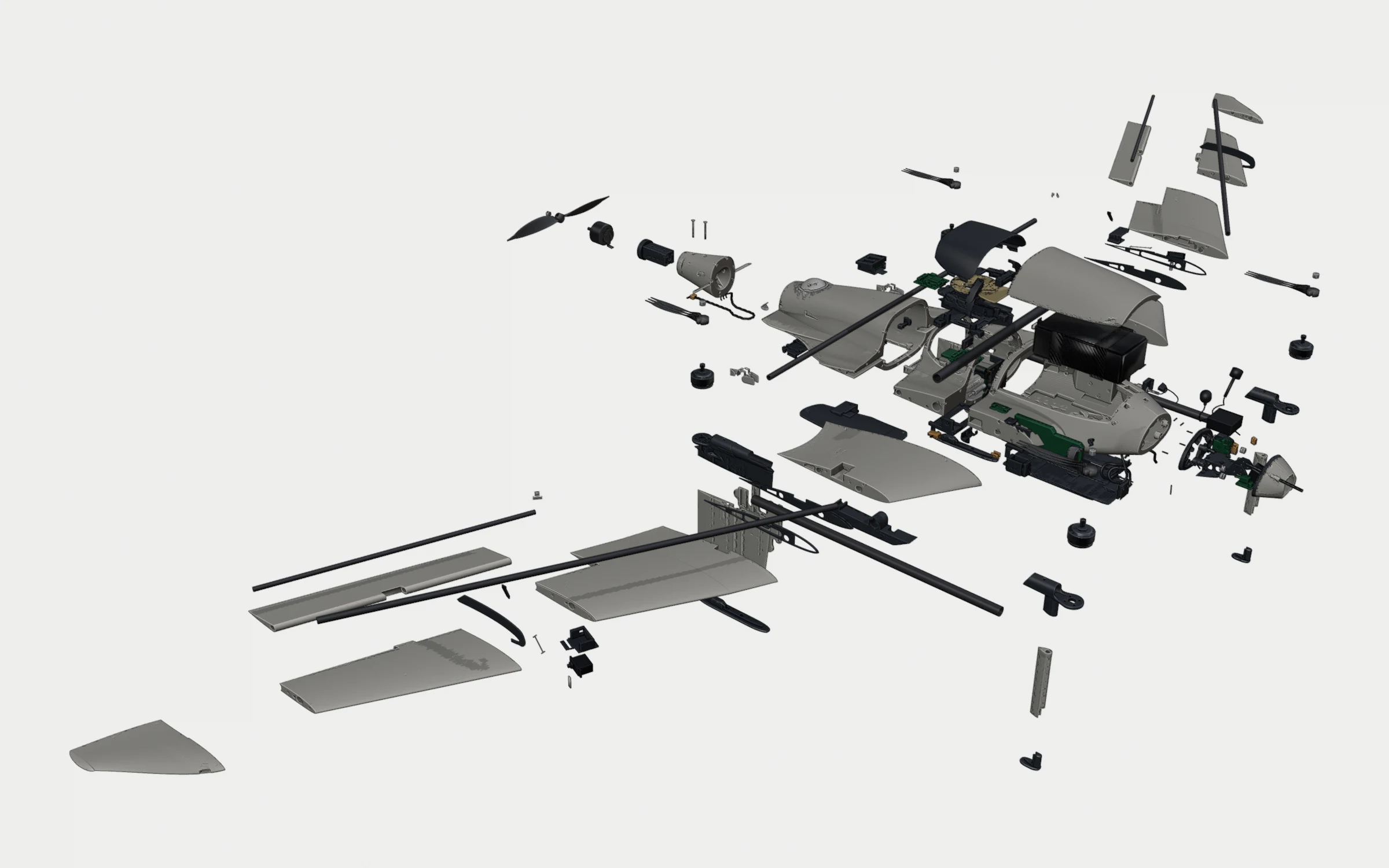

Every part of the first build pulled apart along its own axis: the fuselage shells along the body, the hatch and canopy up, the wings and their spars outboard with the elevons behind them and the servos below, the VTOL Sections and their spars outboard with the motors and folded props above and the keel B feet below, the nose package forward (the cone unit with the brass tube, W104), and the ledger's internals out of the bays: the pack on its slider tray, the Lucid on its edge bracket, the avionics plate with the LUX, the Q43 seat and copper floor, the lights node, the hub pad with its BECs, the J2 bracket, the Aria tray (th-blender W84, W127.2).
- Series
- Workbench scenes
- Engine
- Workbench
- Resolution
- 2400 × 1500
- Source
blender/renders/08-exploded-view.png
