Keels on the pad

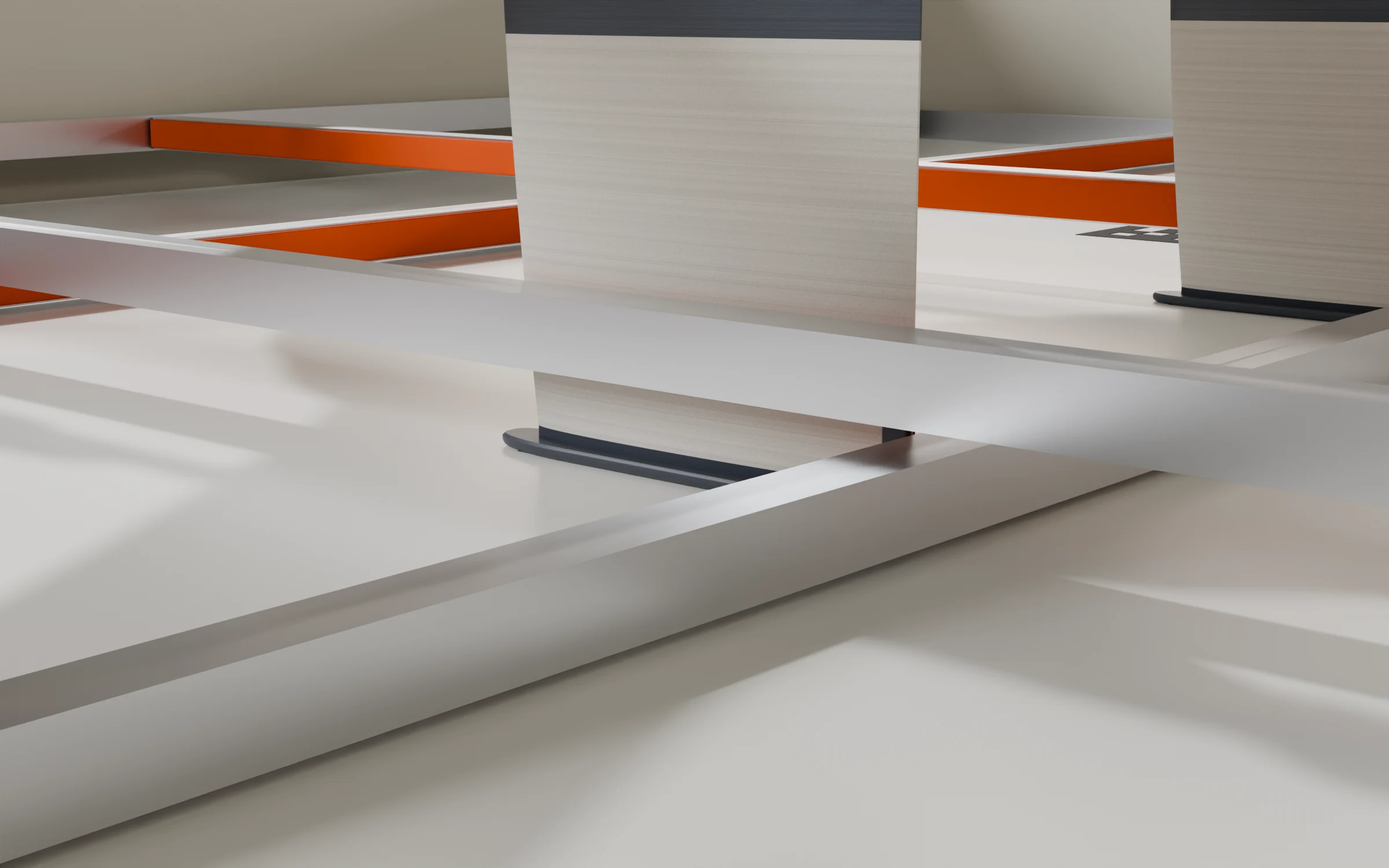

Keels on the pad, ivory colourway — Close-up from outboard and aft, under the wing: both keels standing on their dark canoe soles on the white UHMW pad, squared by the closed push bars, the across-box bar along the outboard face of the port keel and the along-box bar behind the heels. The charge pins are under the soles, out of sight.

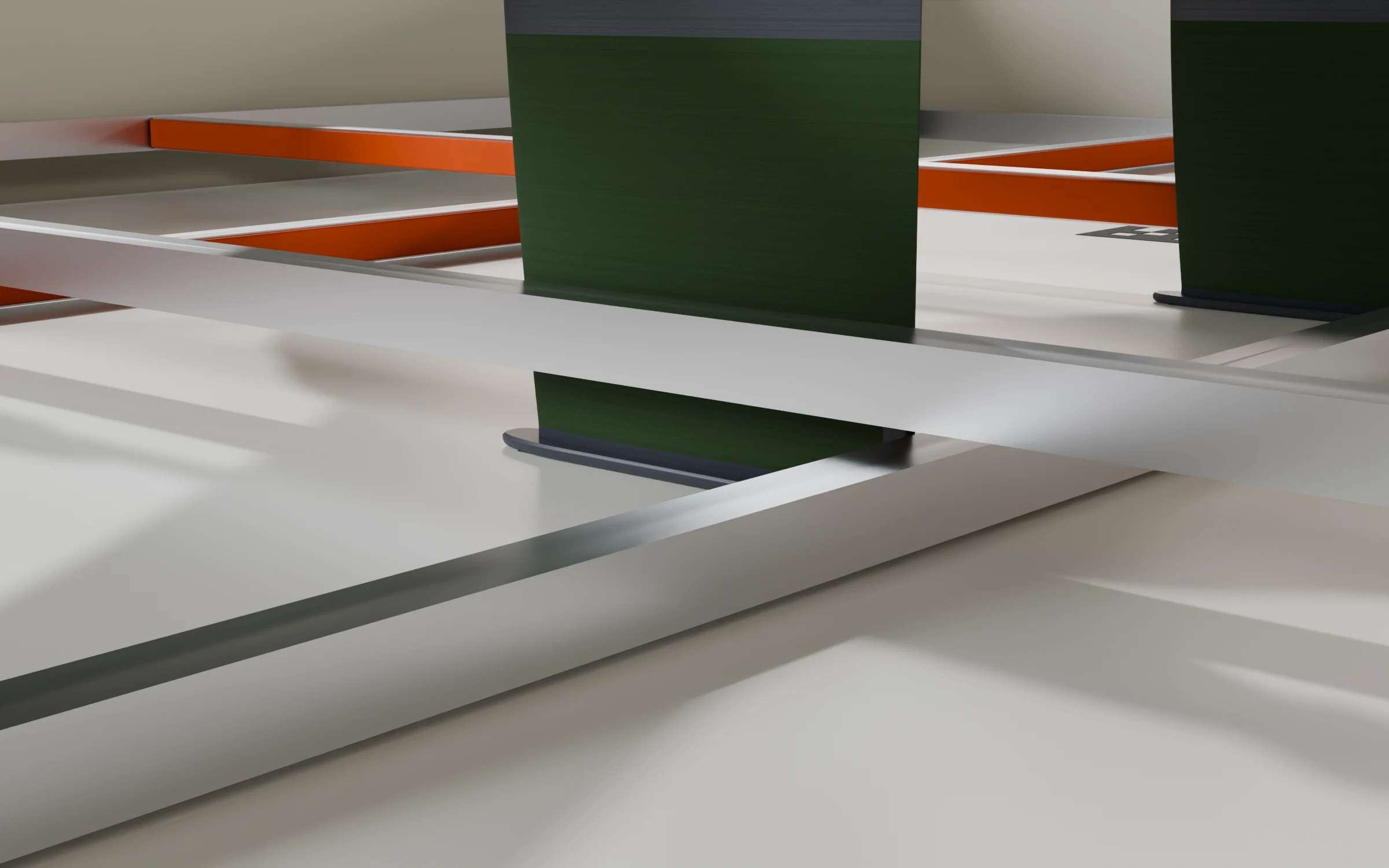

Keels on the pad, green colourway — Close-up from outboard and aft, under the wing: both keels standing on their dark canoe soles on the white UHMW pad, squared by the closed push bars, the across-box bar along the outboard face of the port keel and the along-box bar behind the heels. The charge pins are under the soles, out of sight.

Series: The hangar
Engine: Cycles
Hangar design: Roll-off (built)
Resolution: 2400 × 1500
Source: blender/renders/hangar/h8-detail-keel-contact-cycles.png

Full size, green Full size, ivory
