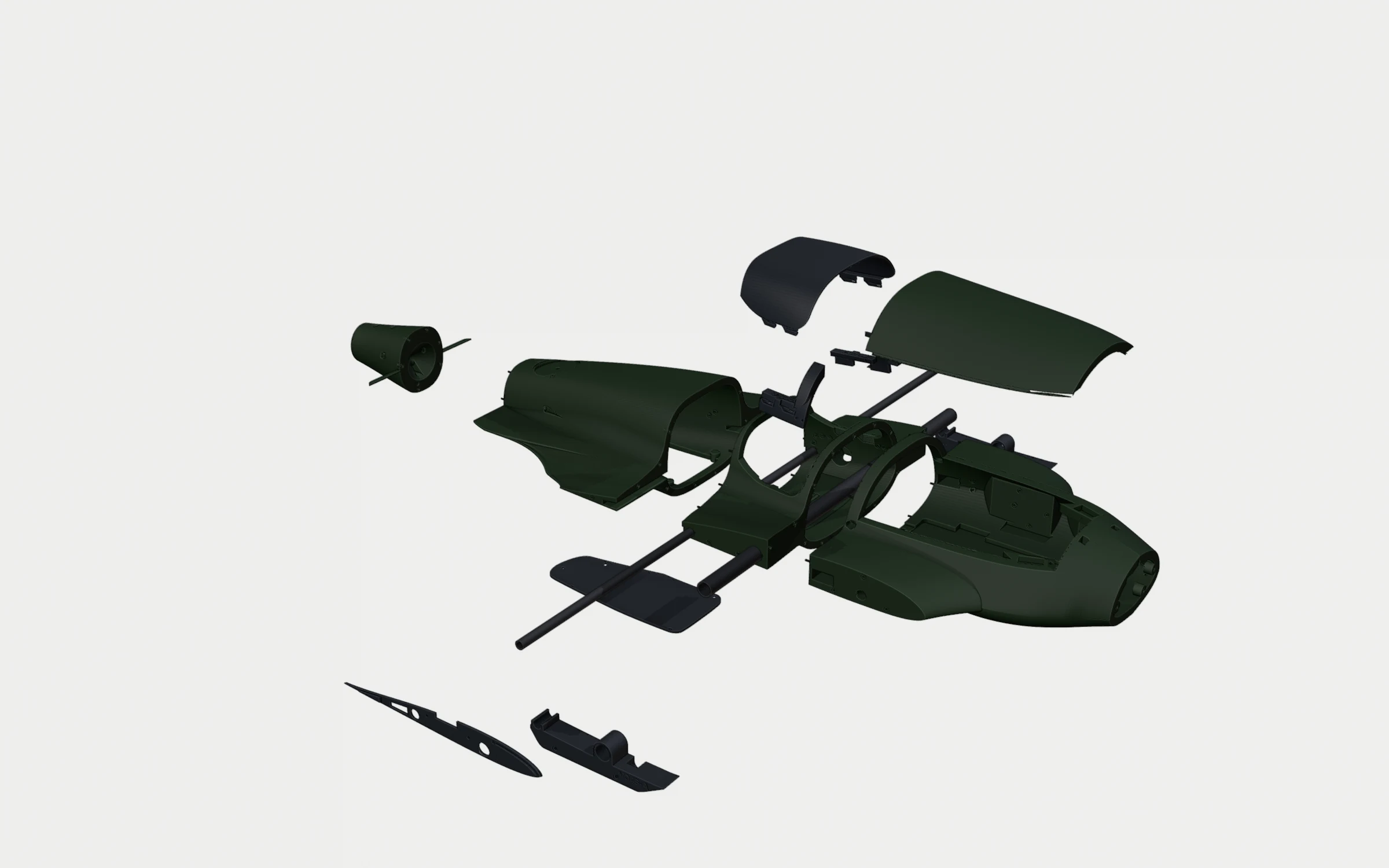

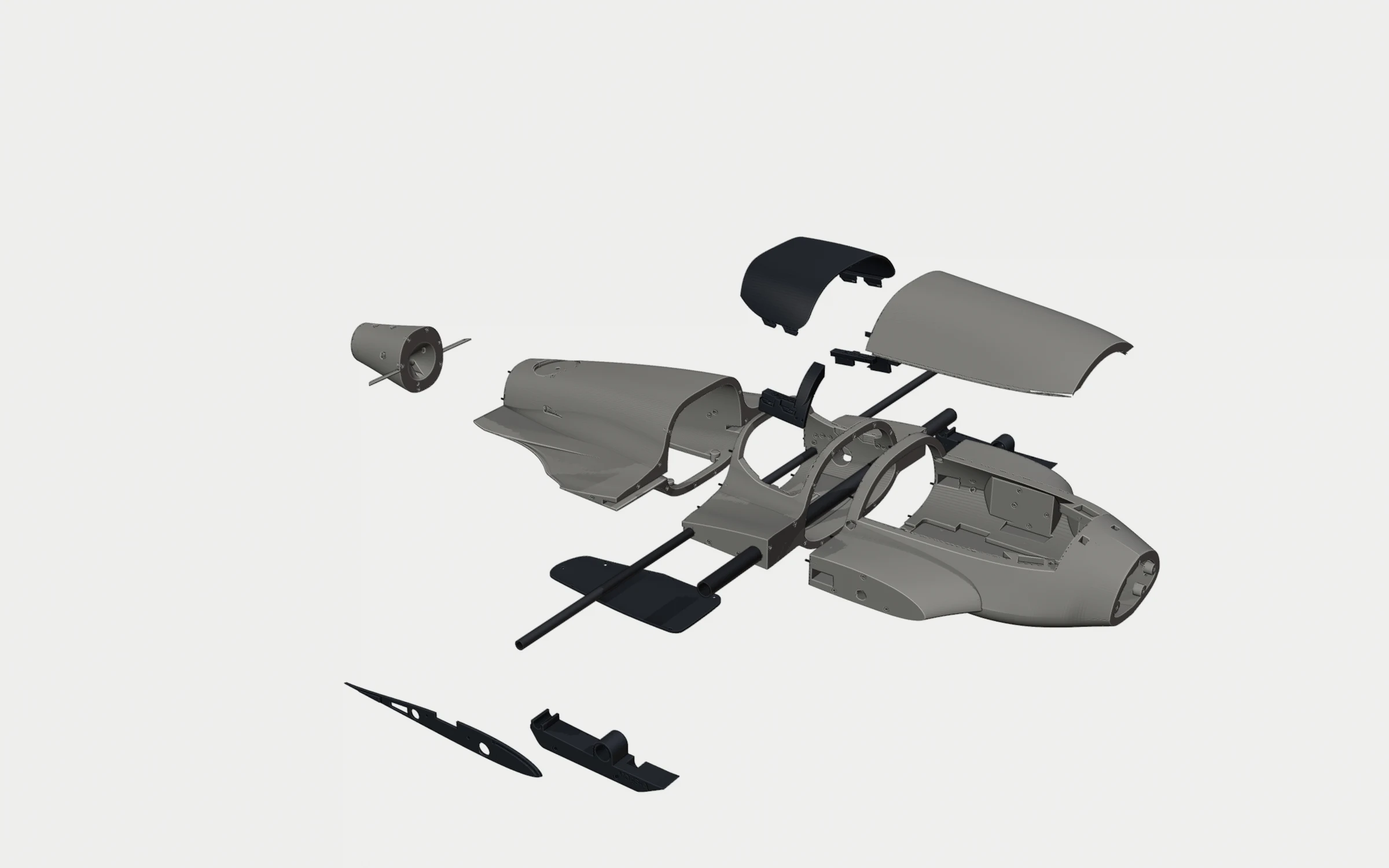

Fuselage C v2.4B exploded along its glue joints, from forward and above: the Front, the Spar Box with its two PETG rim frames lifted off the canopy rim, the Bay and the Tail, the Hatch and the PETG Canopy above, the blank payload cover below; the 14 mm and 8 mm fuselage spars through the Spar Box, the VTOL Section Plates and Spar Mounts outboard, the Hatch Catch over the Front's aft roof, and the cut filament dowels of the three shell joints standing in the forward faces at their stations: twelve at Y 255, ten at Y 341.5, six at Y 560 (th-blender W84); the Front's two antenna notches, port in the nose ring and starboard on the roof (W127.1).
