Port wing

Gallery/Workbench scenes

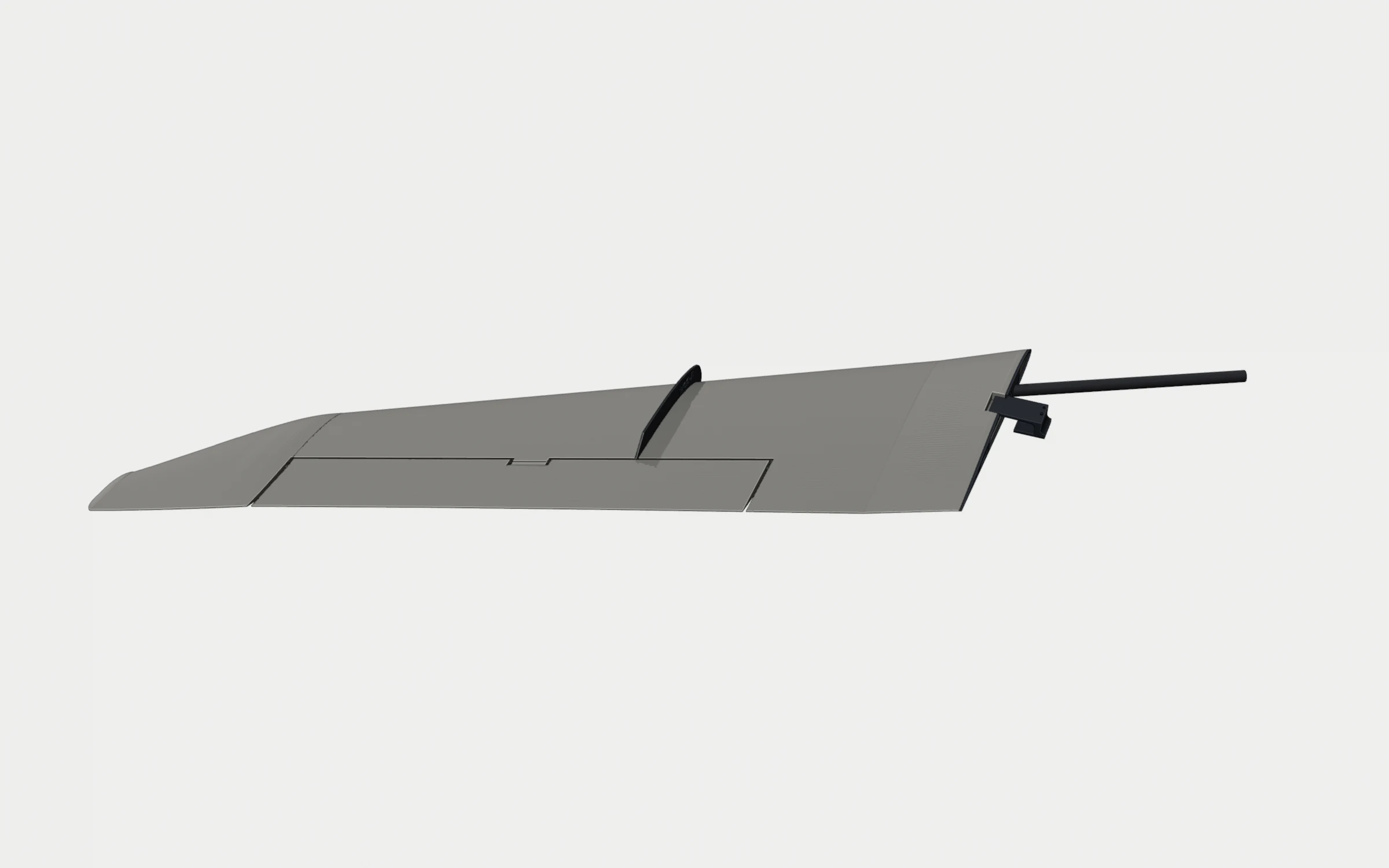

A grey port wing seen from above and behind, swept, with a small fence standing across it part way out, the elevon along its trailing edge and the spar tube projecting from its root., ivory colourway — Our own-section port wing: the Wing Inner and Wing Outer on the 8 mm spar with the PETG fence at X 445 between them, the one-piece elevon hinged on its 6 mm spar, and the tip (th-blender W73, W129).

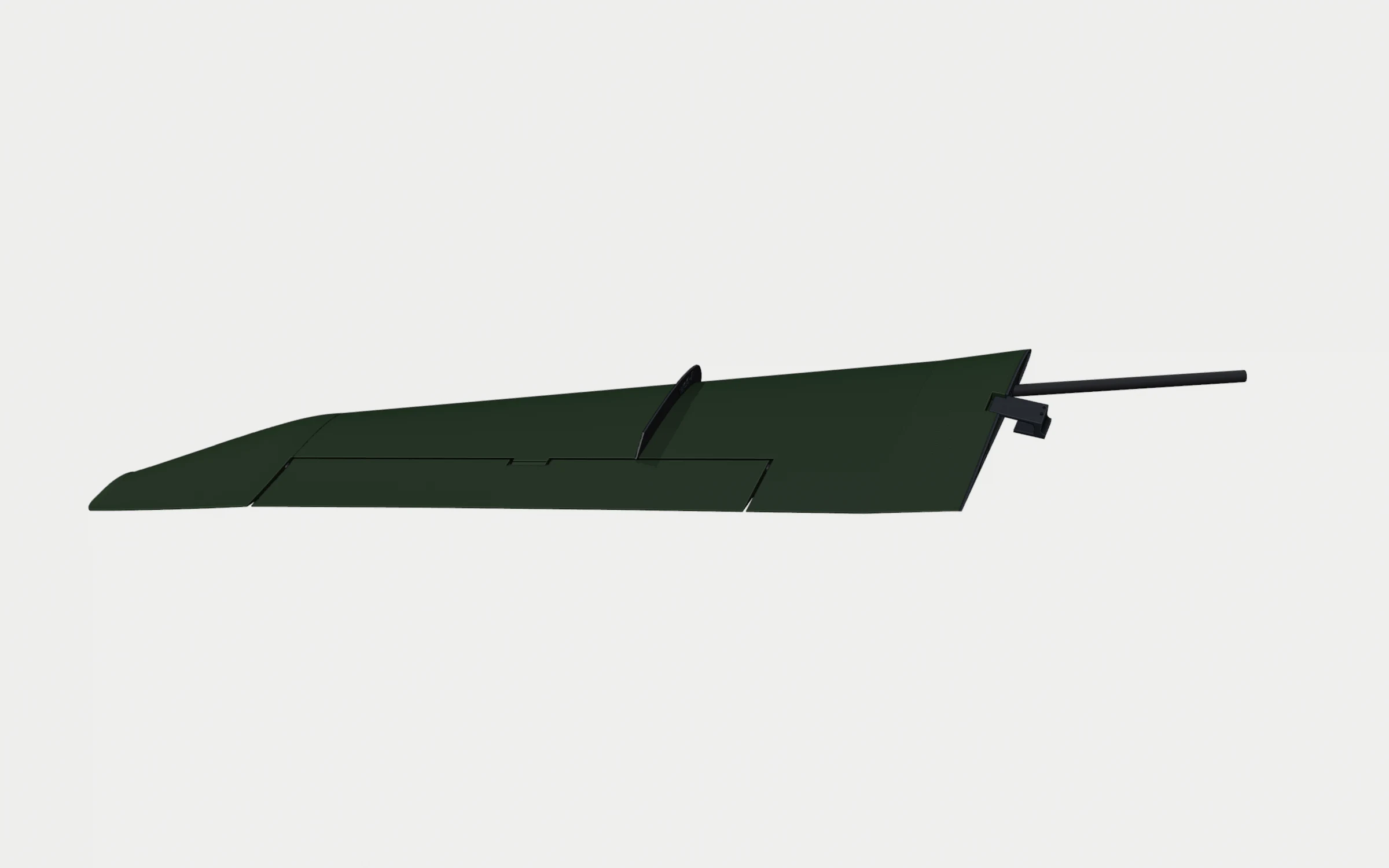

A grey port wing seen from above and behind, swept, with a small fence standing across it part way out, the elevon along its trailing edge and the spar tube projecting from its root., green colourway — Our own-section port wing: the Wing Inner and Wing Outer on the 8 mm spar with the PETG fence at X 445 between them, the one-piece elevon hinged on its 6 mm spar, and the tip (th-blender W73, W129).

Series: Workbench scenes
Engine: Workbench
Resolution: 2400 × 1500
Source: blender/renders/05-assy-wing-r.png

Full size, green Full size, ivory
