First build, flight configuration

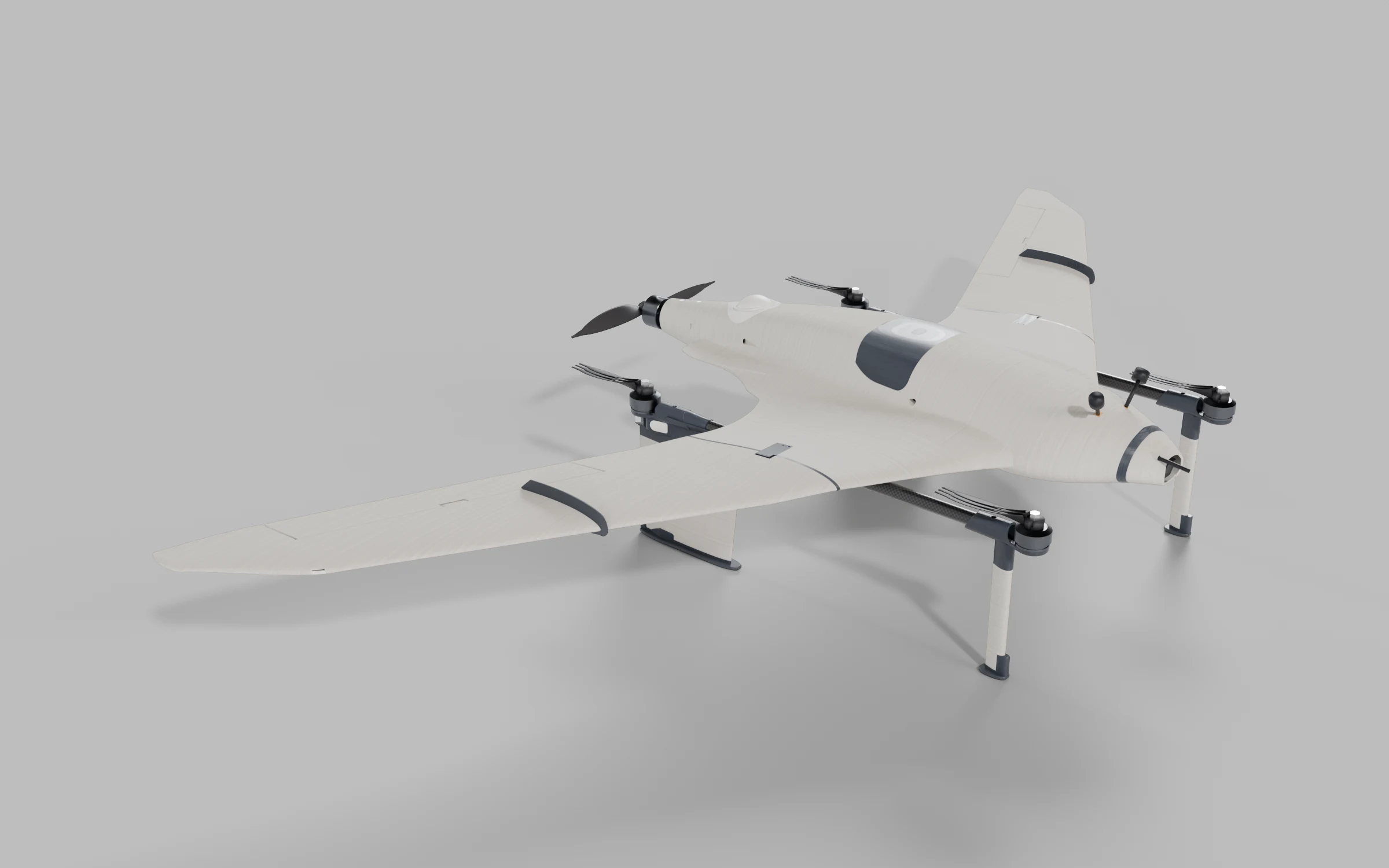

A pale flying-wing aircraft with a dark canopy seen from the front quarter, its four lift propellers folded flat along their arms, a two-blade pusher propeller at the tail, and four slender legs with small feet under the motor arms., ivory colourwayA pale flying-wing aircraft with a dark canopy seen from the front quarter, its four lift propellers folded flat along their arms, a two-blade pusher propeller at the tail, and four slender legs with small feet under the motor arms., green colourway

The first build complete as it flies: Fuselage C v2.4B with its canopy, hatch and blank payload cover, our own-section wing with the X 445 fences, the nose package with our brass total tube beside the camera and the camera 15° down (th-blender W104), the four EMAX ECO II 2807 with their Gemfan F8041 props folded aft, the EMAX ECO II 3115 pusher with the fixed APC 10x7E, and keel B as the ledger prints it: the antenna-bay blades with their cassette lids, the cable-riser mounts and bead-boss soles aft, the cored stilt blades on their bolt-pilot mounts forward (th-blender W84); the two video antennas, port in the nose ring and starboard on the roof aft of the static lines (th-blender W127.1).

Series
The airframe
Engine
Cycles
Resolution
2400 × 1500
Source
blender/renders/07-complete-assembled-cycles.png
Full size, greenFull size, ivory
