Elevon linkage

The underside of a pale printed wing, with a small dark servo in a pocket, a thin steel pushrod running aft from its arm to a dark control horn on the elevon's underside. Large raised characters, cut off by the top edge, stand on the wing's underside at the top left., ivory colourwayThe underside of a pale printed wing, with a small dark servo in a pocket, a thin steel pushrod running aft from its arm to a dark control horn on the elevon's underside. Large raised characters, cut off by the top edge, stand on the wing's underside at the top left., green colourway

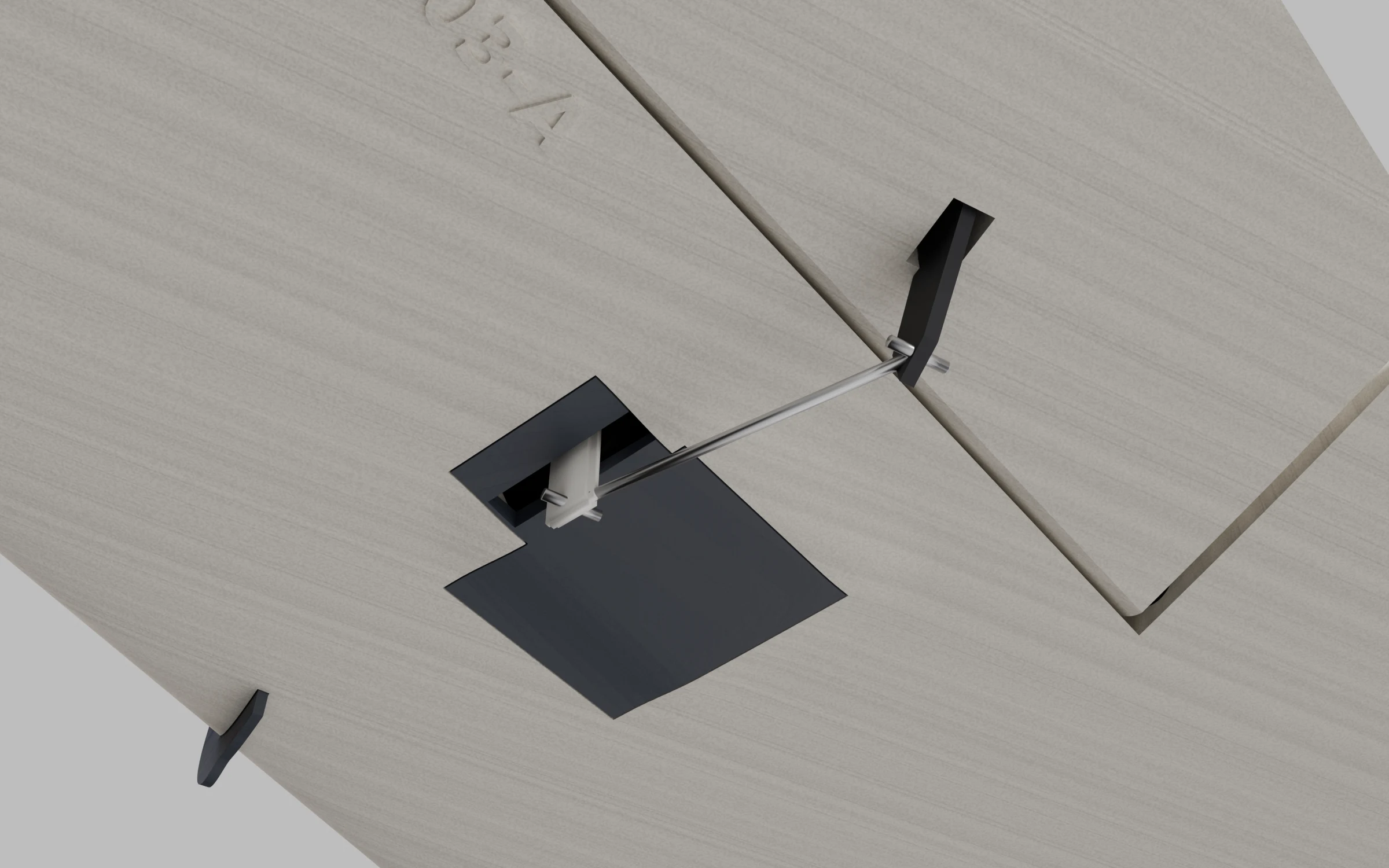

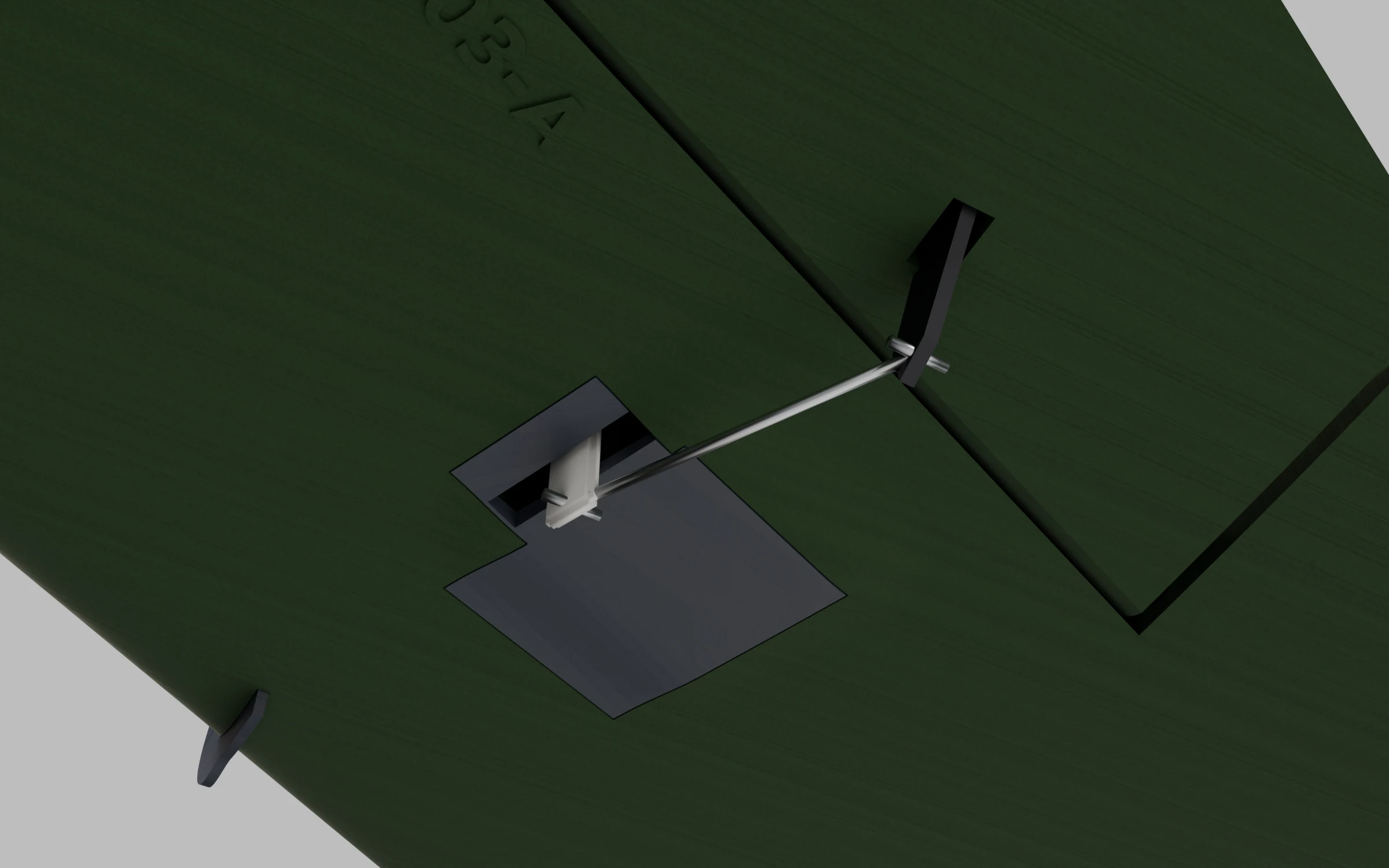

Our own-section wing seen from below: the Hitec MD65MG elevon servo in the own wing's servo mount, turned to follow the servo pocket and the hinge line, then the pushrod and the control horn on the elevon (th-blender W73). At the top left, the part mark of the Wing Outer, W03-A, raised on its underside just outboard of the panel joint, runs out of the view (th-blender W129).
