Antenna grommets

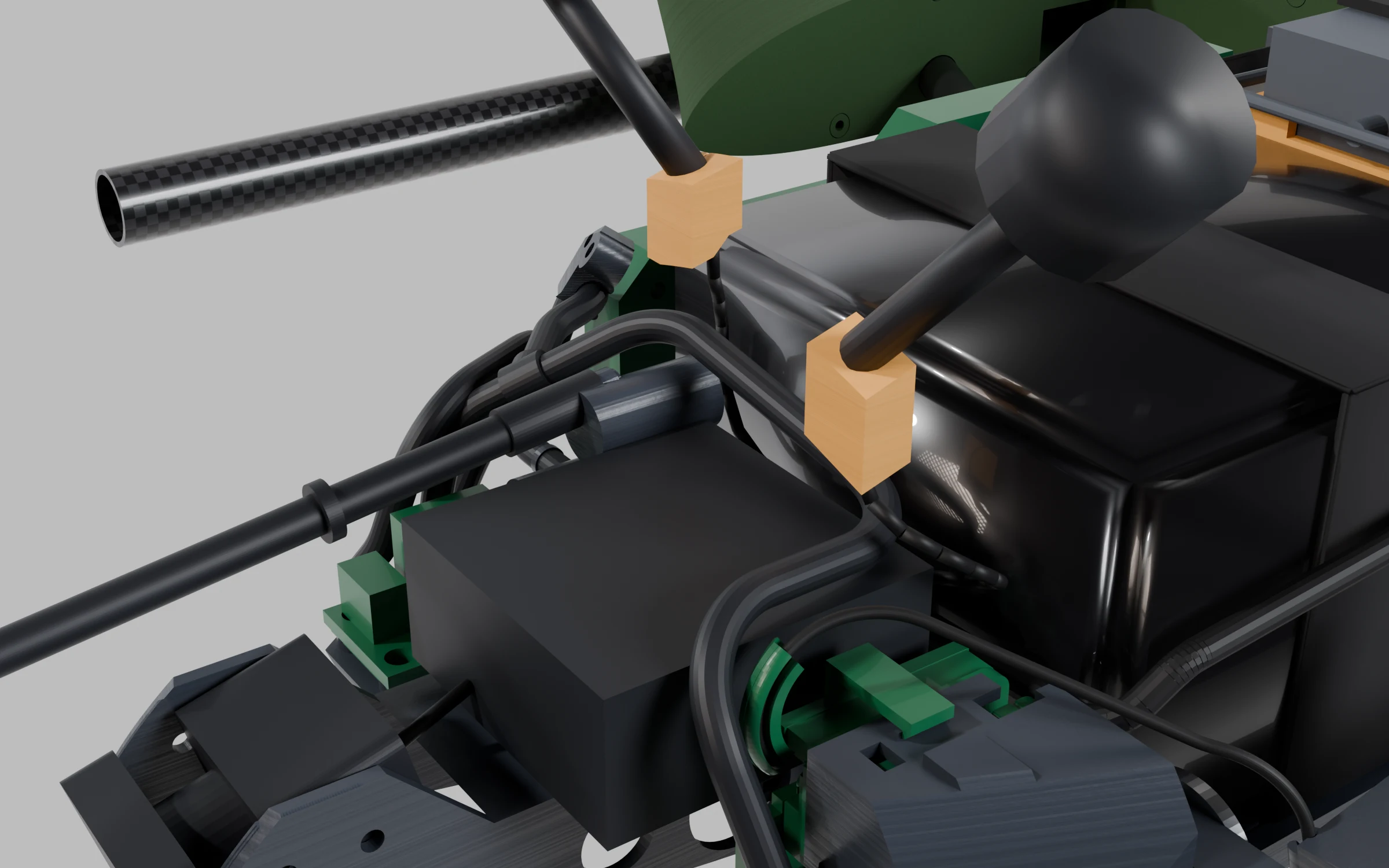

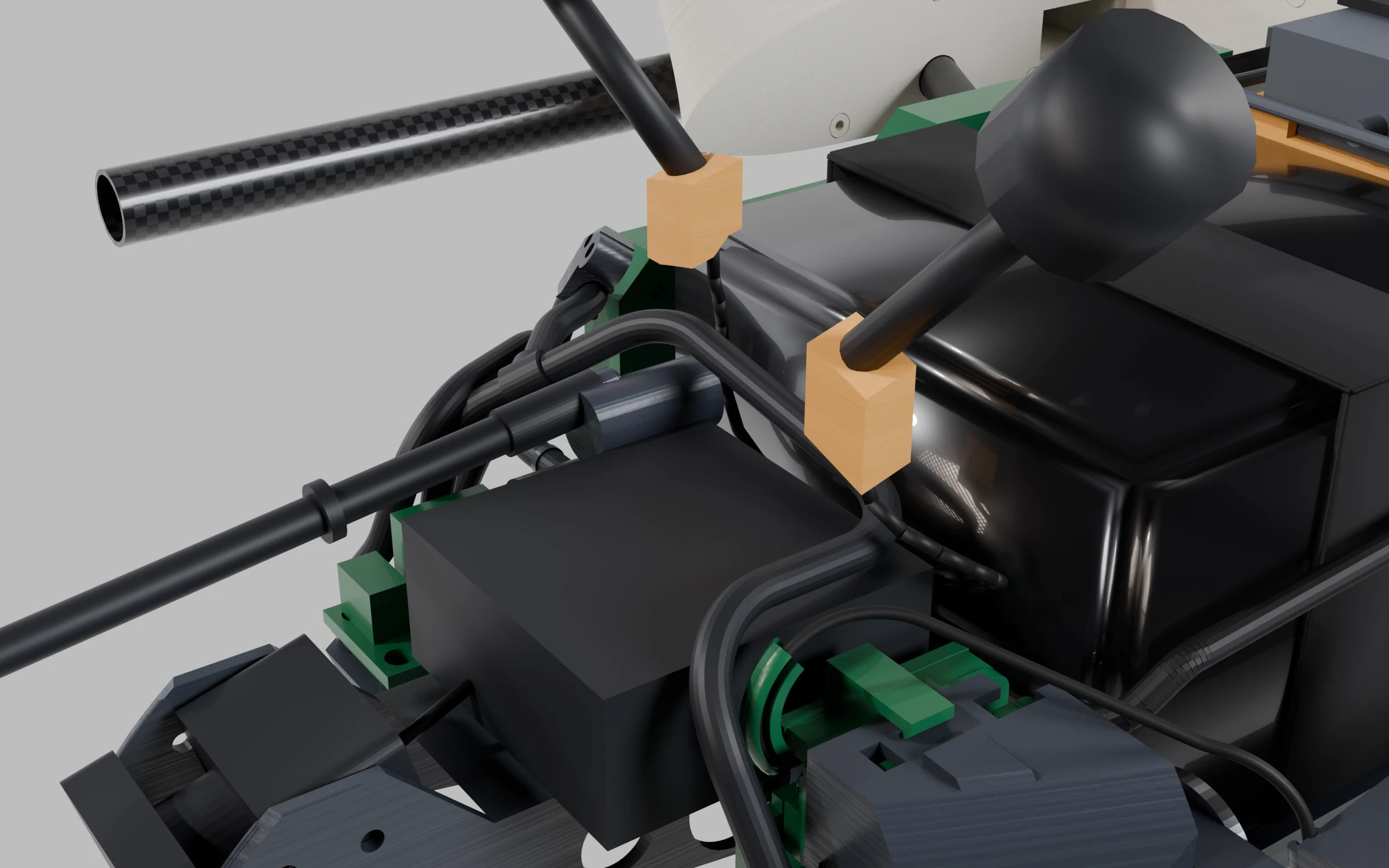

A close view inside the nose from above and ahead. Two tan grommets stand above a black transmitter box; from the left one a black stem leans up and to the left out of the picture, and from the right one a black stem carries a large mushroom head at the top right. Black leads curve up into both grommets, a black cable bundle runs over the box, a long dark tube runs forward to the left, and a carbon tube crosses the top left corner., ivory colourwayA close view inside the nose from above and ahead. Two tan grommets stand above a black transmitter box; from the left one a black stem leans up and to the left out of the picture, and from the right one a black stem carries a large mushroom head at the top right. Black leads curve up into both grommets, a black cable bundle runs over the box, a long dark tube runs forward to the left, and a carbon tube crosses the top left corner., green colourway

The two video antennas with the shell removed, from port, ahead and above: each lead comes up from the VTX in a curve into its tan TPU grommet, and the stem stands in the grommet's seat. The starboard grommet (left) sits in the roof notch at X -18, Y 74, its stem leaning outboard and forward; the port grommet (right) sits in the grown notch of the nose ring, its stem leaning outboard to port. The VTX harness lane (an estimate) runs over the VTX, and the brass total tube runs forward below (th-blender W127.1). The size of the Walksnail antennas is an estimate.

Series
Details
Engine
Cycles
Resolution
2400 × 1500
Source
blender/renders/22-detail-antenna-grommets-cycles.png
Full size, greenFull size, ivory
