Payload bay

Gallery/Details

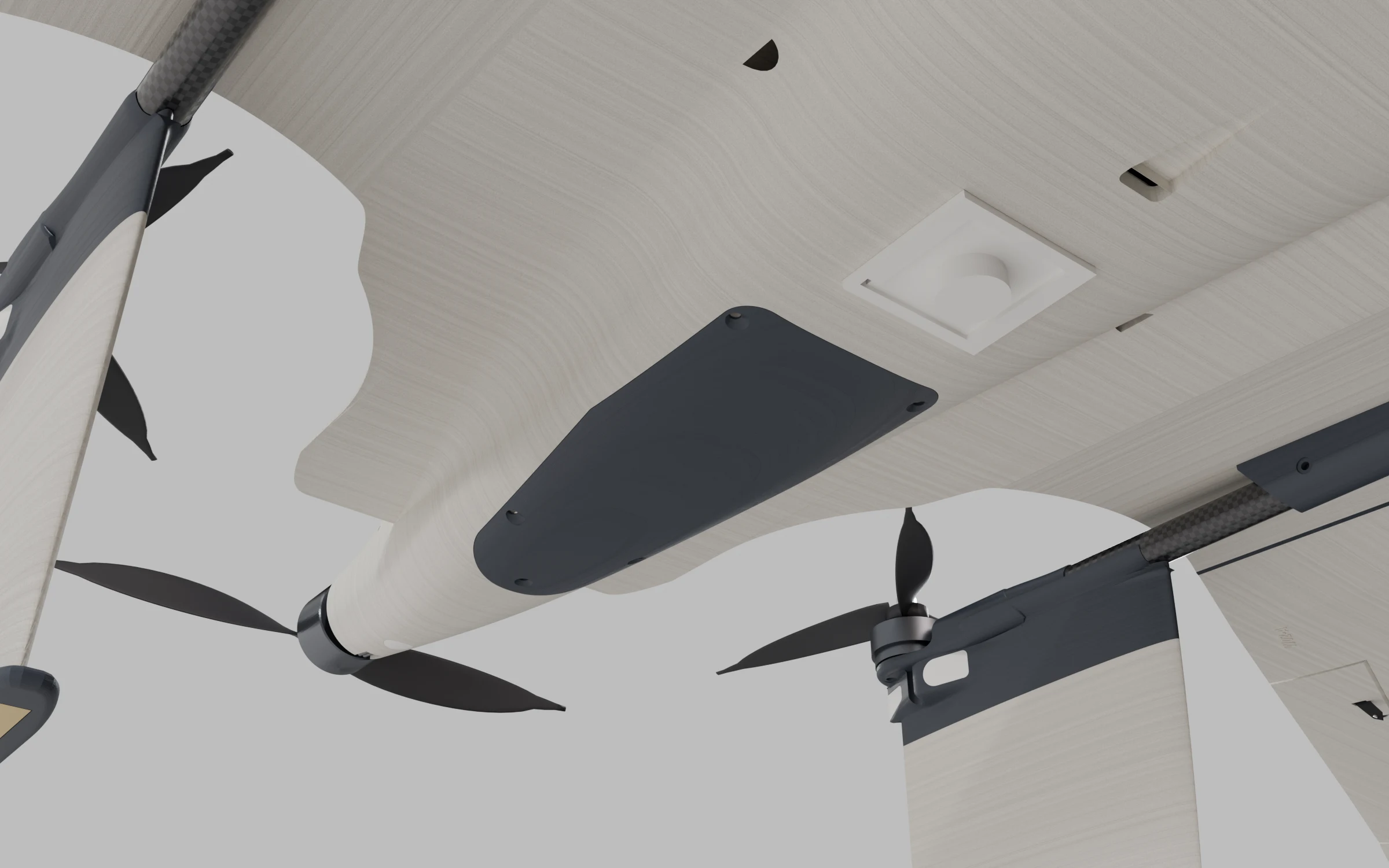

Payload bay, ivory colourway — From below and behind: the belly bay of Fuselage C v2.4B under its blank payload cover, held by countersunk M3 screws (no Survey3W on the first build), with the APC pusher, keel B's rear keels and the rear lift props (th-blender W66).

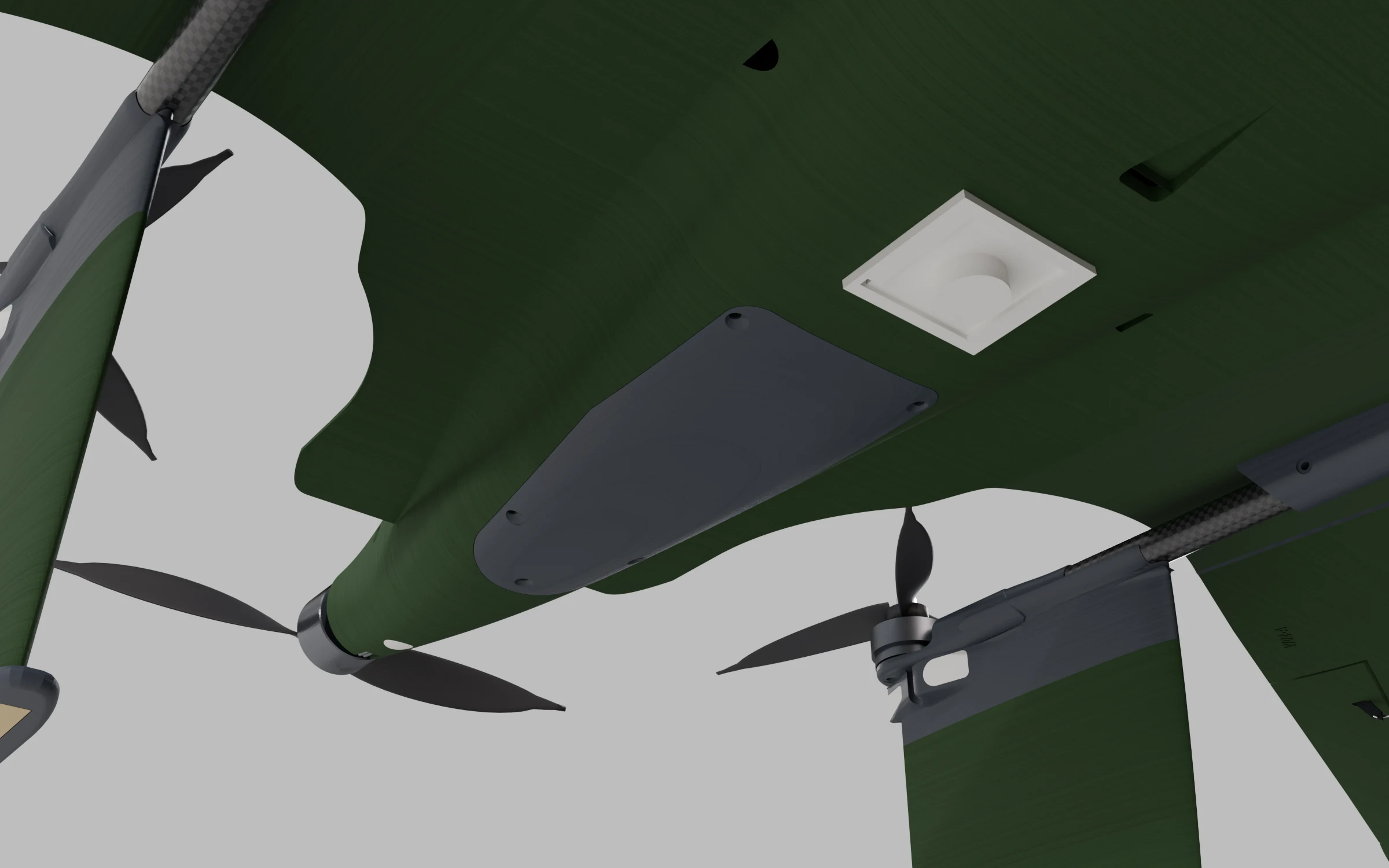

Payload bay, green colourway — From below and behind: the belly bay of Fuselage C v2.4B under its blank payload cover, held by countersunk M3 screws (no Survey3W on the first build), with the APC pusher, keel B's rear keels and the rear lift props (th-blender W66).

Series: Details
Engine: Cycles
Resolution: 2400 × 1500
Source: blender/renders/22-detail-payload-bay-cycles.png

Full size, green Full size, ivory

←PreviousFirst build, mass and CG NextHatch lifted→

More from details

CyclesHatch lifted
CyclesInside the nose
CyclesAntenna grommets
CyclesJ2, the split bulkhead
