Boards

These are the circuit boards that th-eda designs for TerraHawk, as KiCad files. Each page shows the schematic and, when the board has one, the layout. Drag to move, scroll or pinch to zoom, and click a part or a net to see its data. The pictures are KiCad 3D renders of each layout, or the schematic of a board that has no layout yet. The files come from the EDA repository at revision b201257 (2026-10-12). Most boards are drafts: do not order them from these files.

•

  Beacon

  always-on power, GPS and LoRa

  Rev A draft1 sheet80 parts60 × 40 mm, 4 layers
•

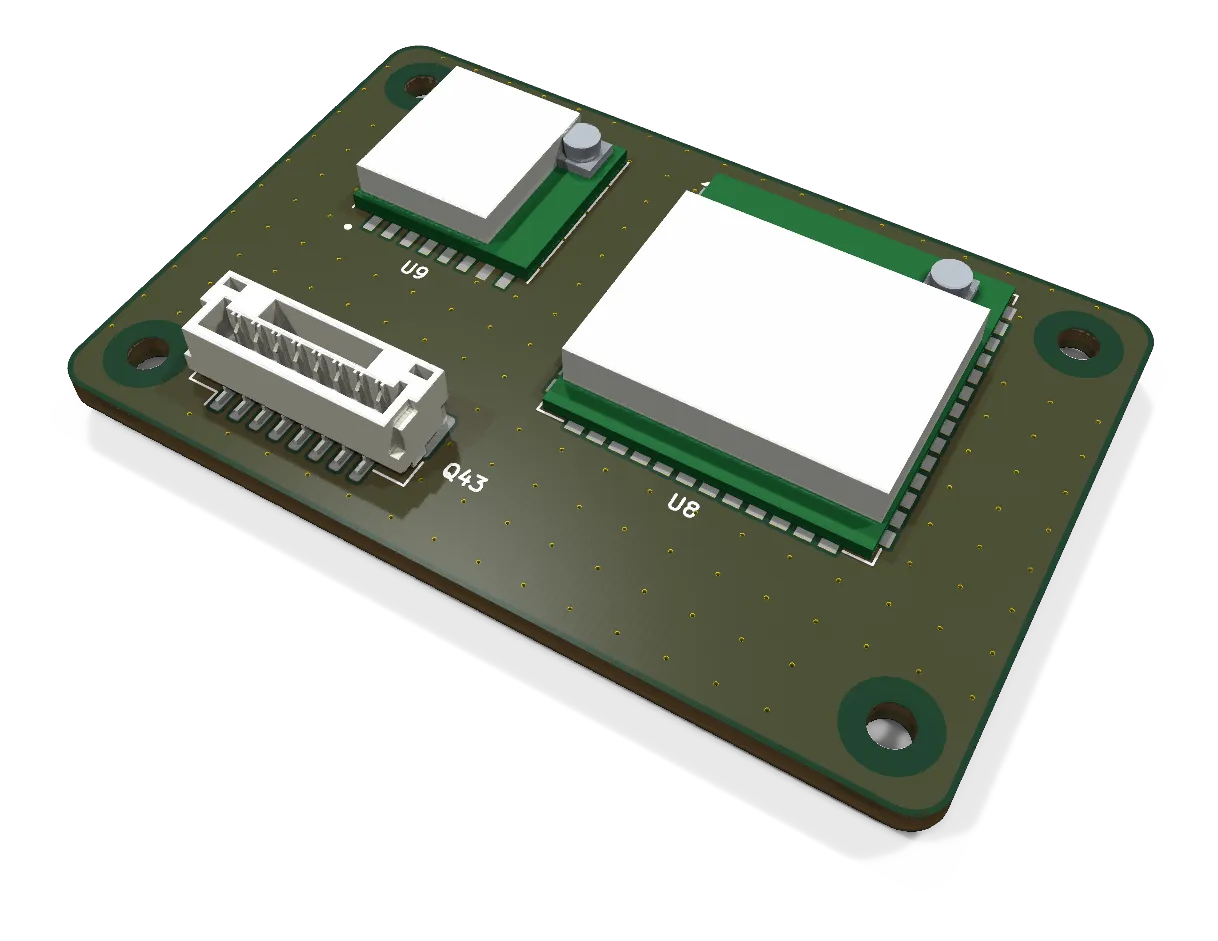

  Beacon block board: coupon

  beacon nets cut at the block boundary by tools/blockgen.py; bench header pins are the only addition

  Rev A1 sheet3 parts49 × 32 mm, 2 layers
•

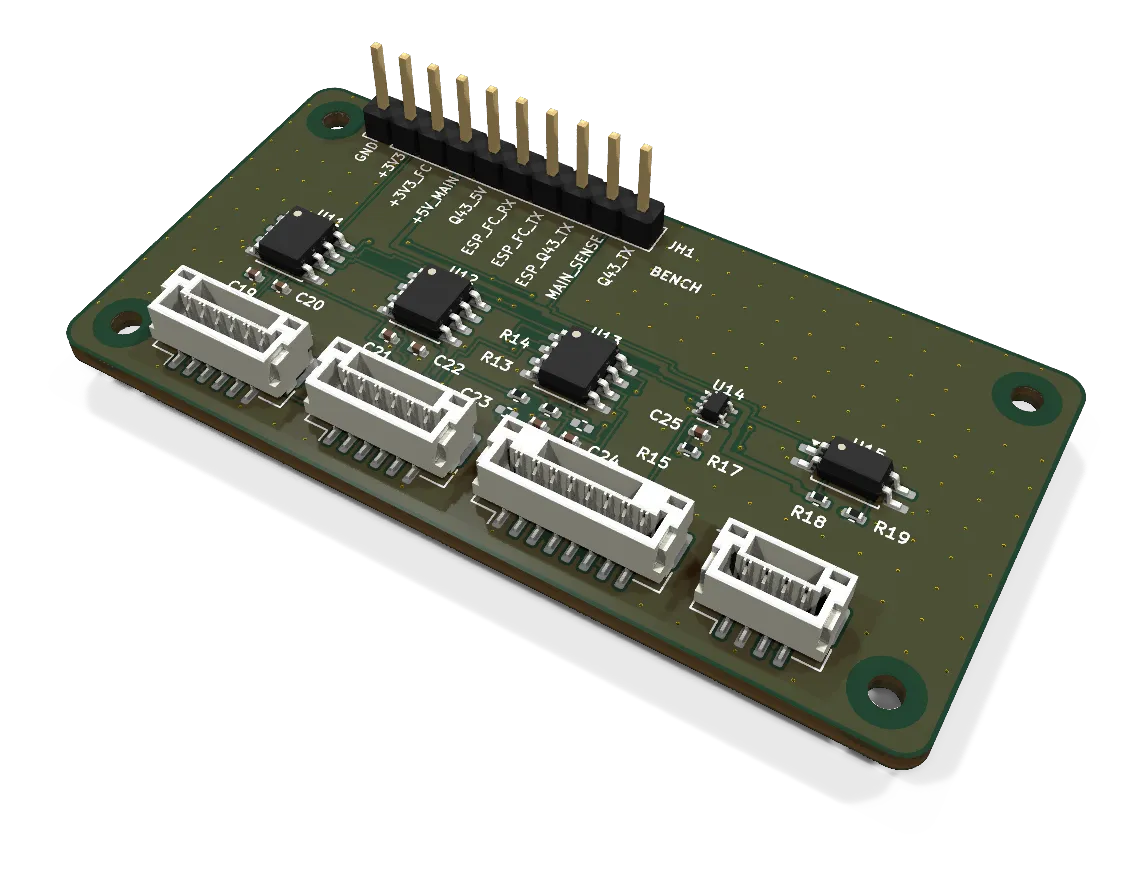

  Beacon block board: iso

  beacon nets cut at the block boundary by tools/blockgen.py; bench header pins are the only addition

  Rev A1 sheet24 parts64 × 32 mm, 2 layers
•

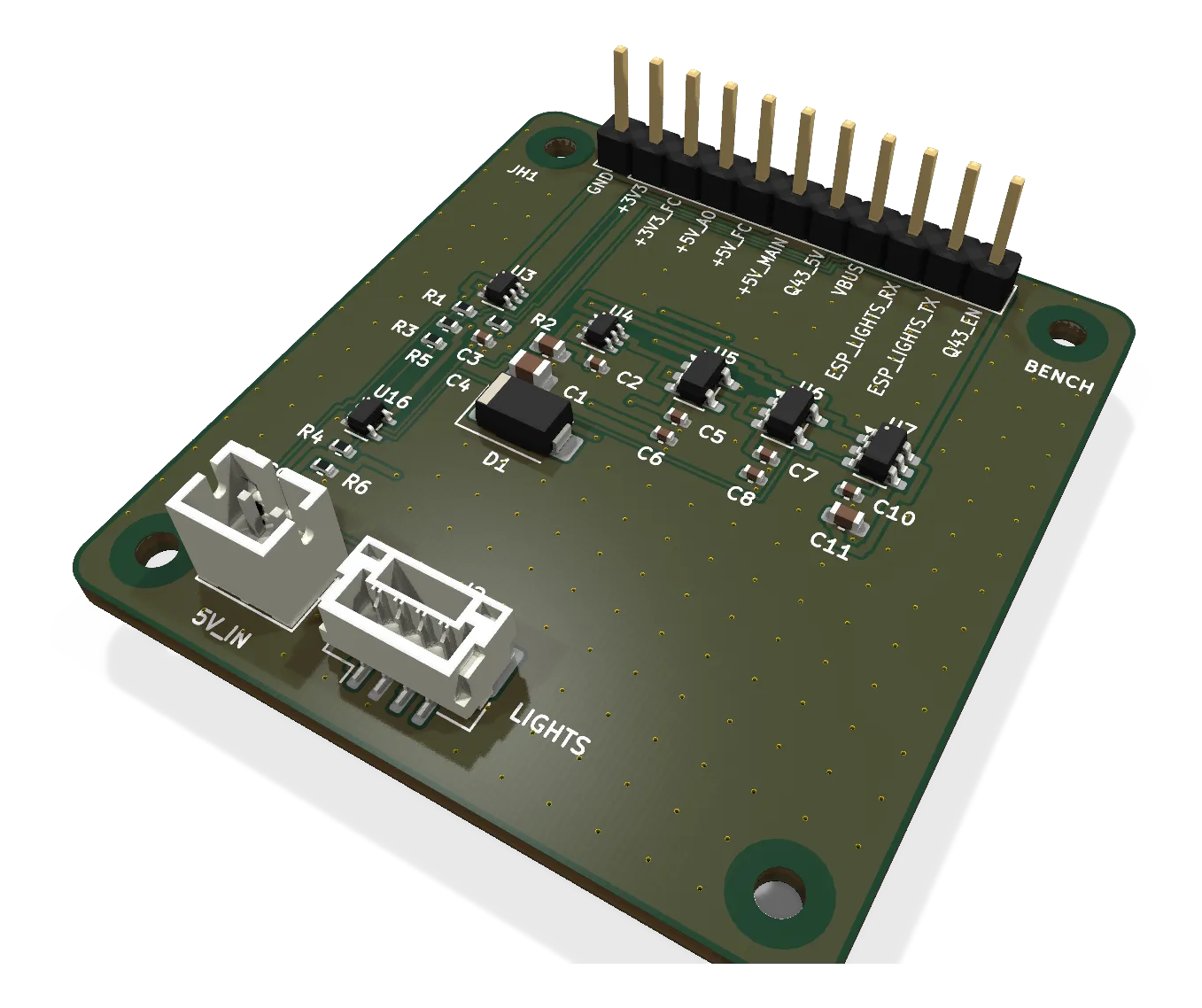

  Beacon block board: power-rails

  beacon nets cut at the block boundary by tools/blockgen.py; bench header pins are the only addition

  Rev A1 sheet27 parts42 × 45 mm, 2 layers
•

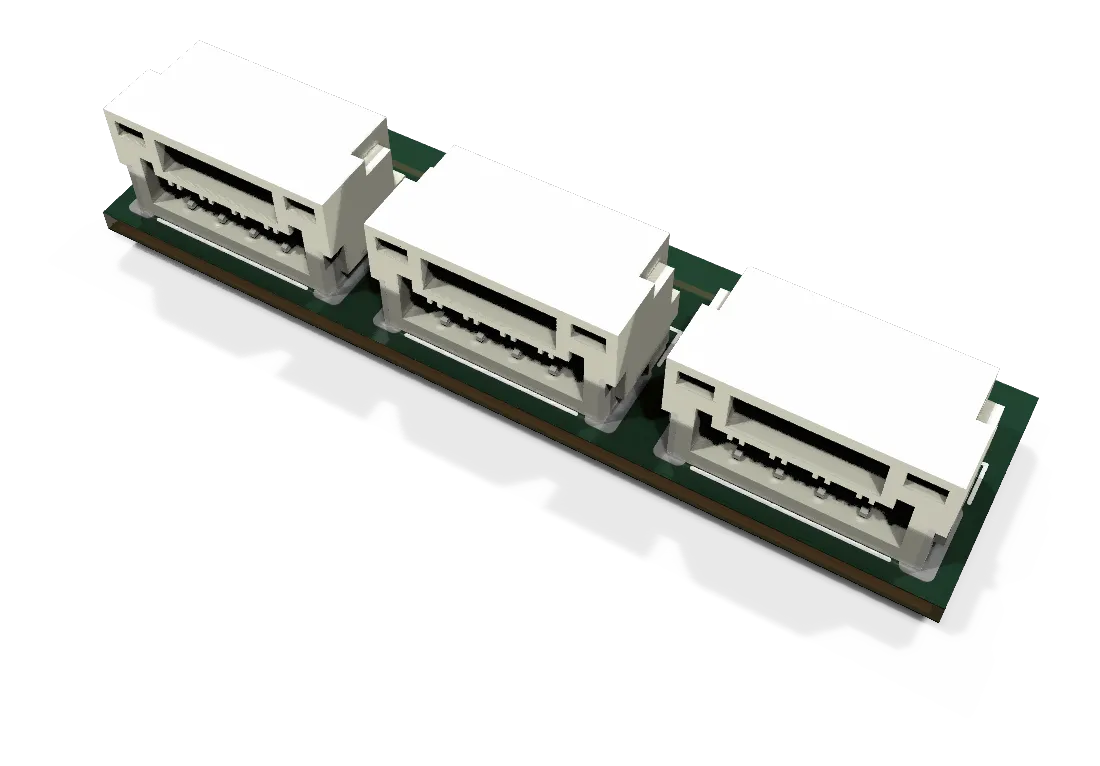

  CAN joiner

  Three JST GH-4 headers with every pin bussed and no terminator; 29 x 8 mm on 0.8 mm FR-4, seven per airframe, panelised six-up.

  Rev A.11 sheet3 parts29 × 8 mm, 2 layers
•

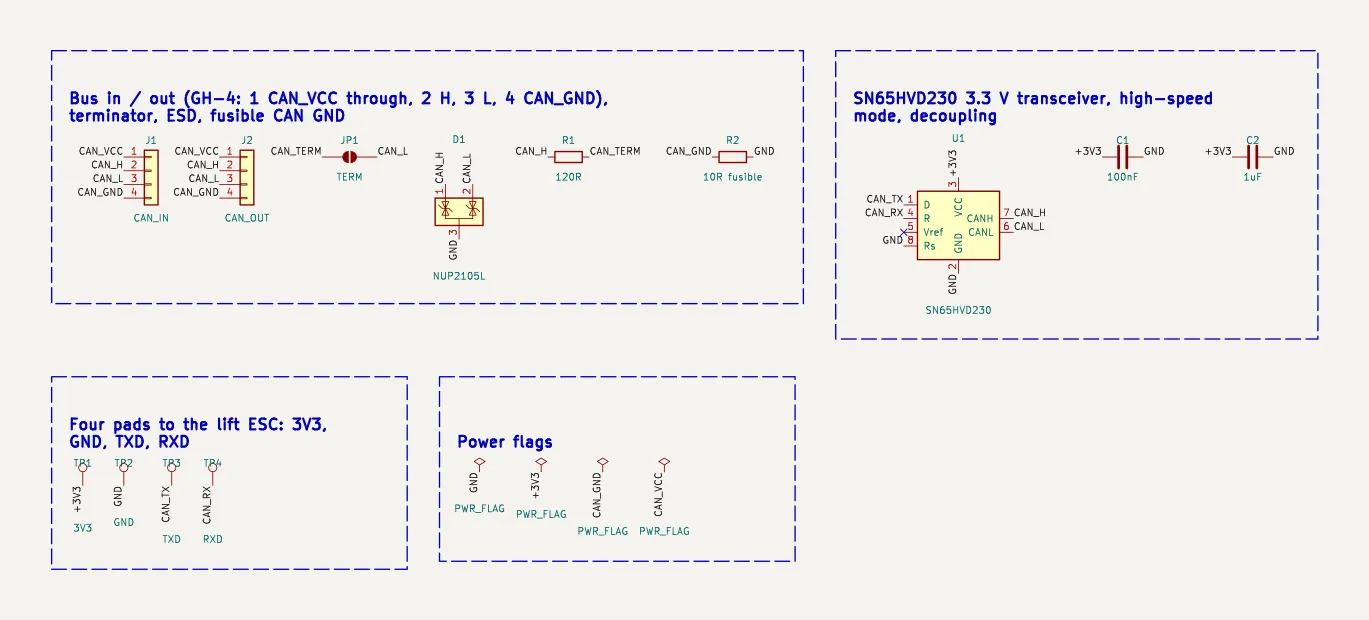

  CAN tap

  lift ESC DroneCAN daughter board

  Rev A draft1 sheet13 partsNo layout yet
•

  Charge Node

  The whole charge node as one schematic, for review. The sense board and the power stage are the boards that are built.

  Rev A rc65 sheets112 partsNo layout yet
•

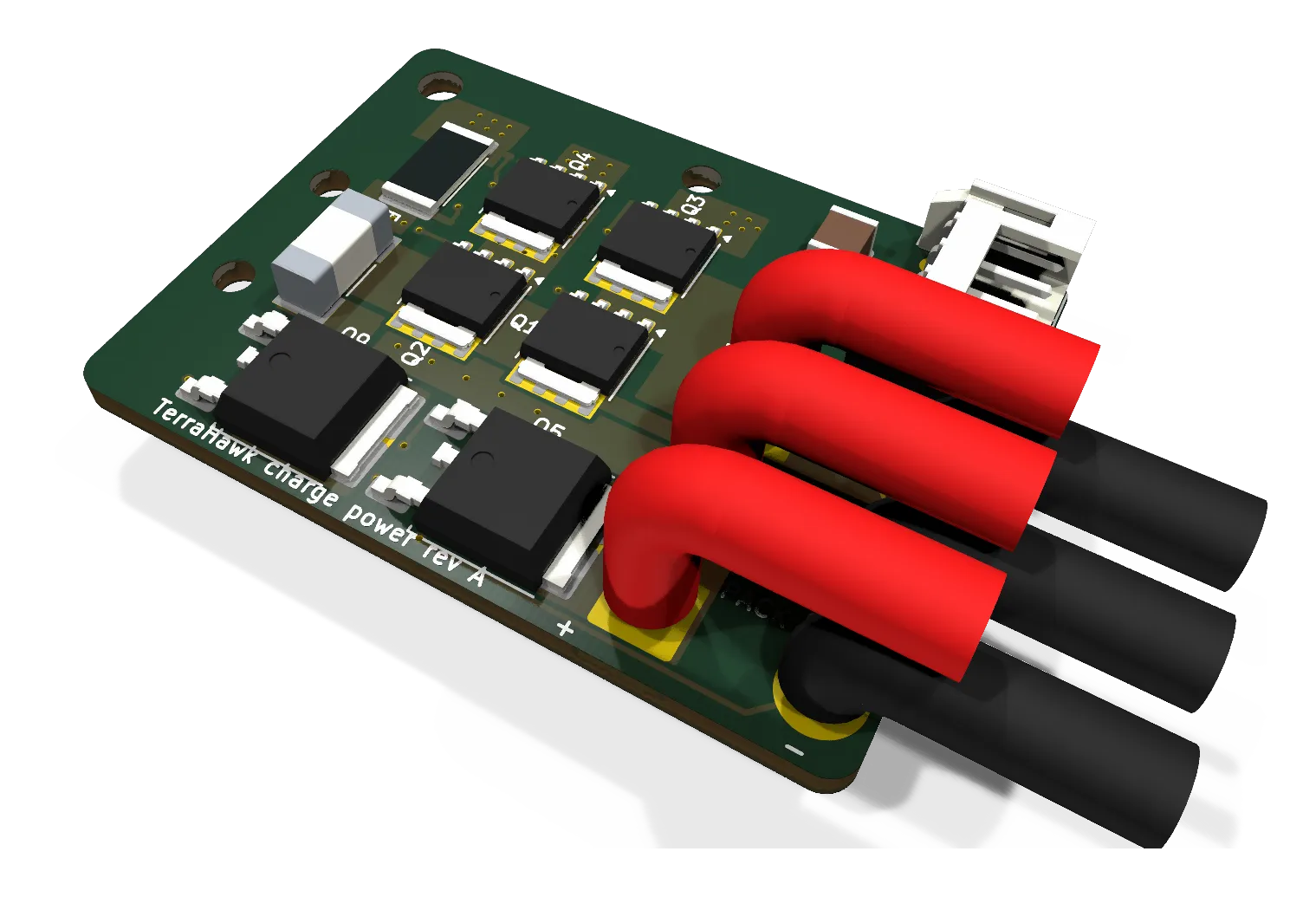

  Charge Node: power stage

  Charge node power stage on 2 oz copper: LT4320 ideal-diode bridge, fuse, load switch and current shunt.

  Rev A rc62 sheets32 parts40 × 30 mm, 2 layers
•

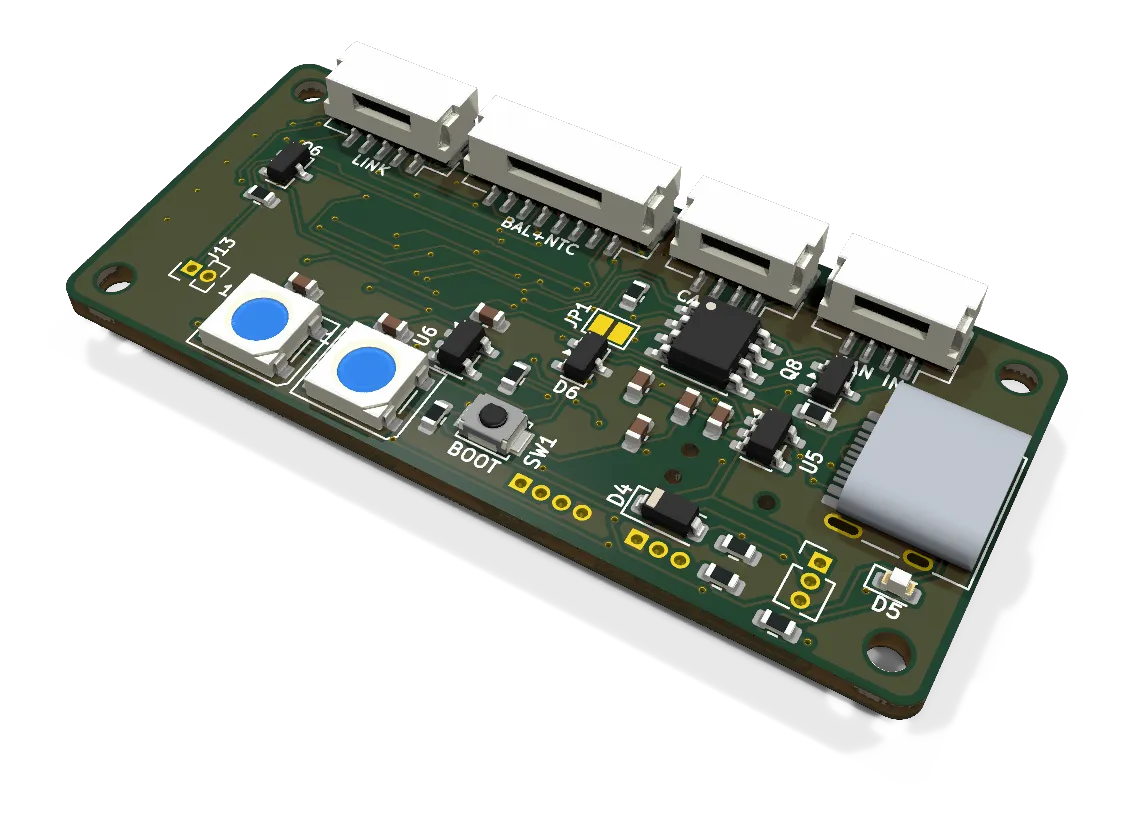

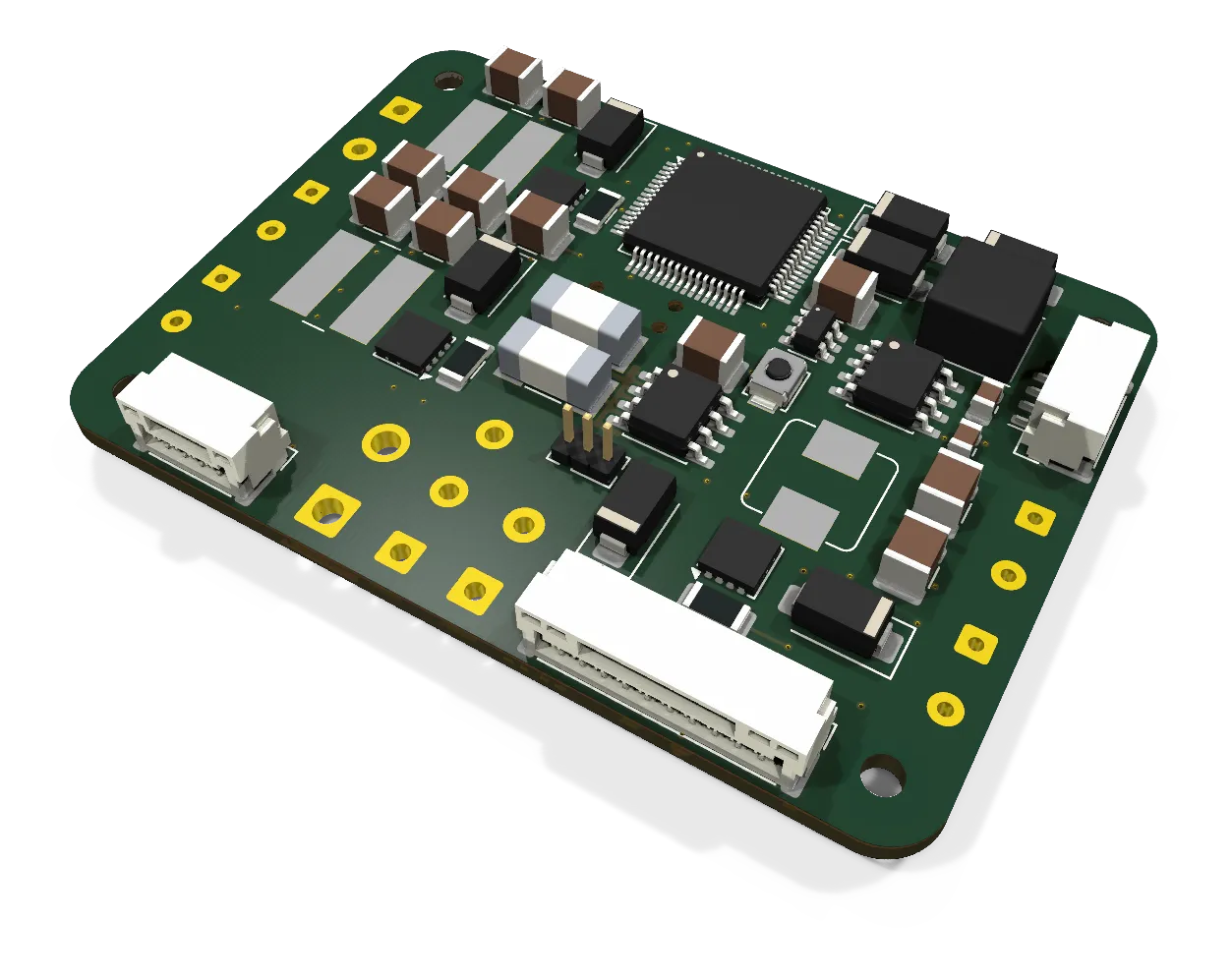

  Charge Node: sense board

  Charge node sense board: STM32 running AP_Periph, DroneCAN, cell and pack sensing, balancer switch.

  Rev A rc64 sheets84 parts55 × 25 mm, 2 layers
•

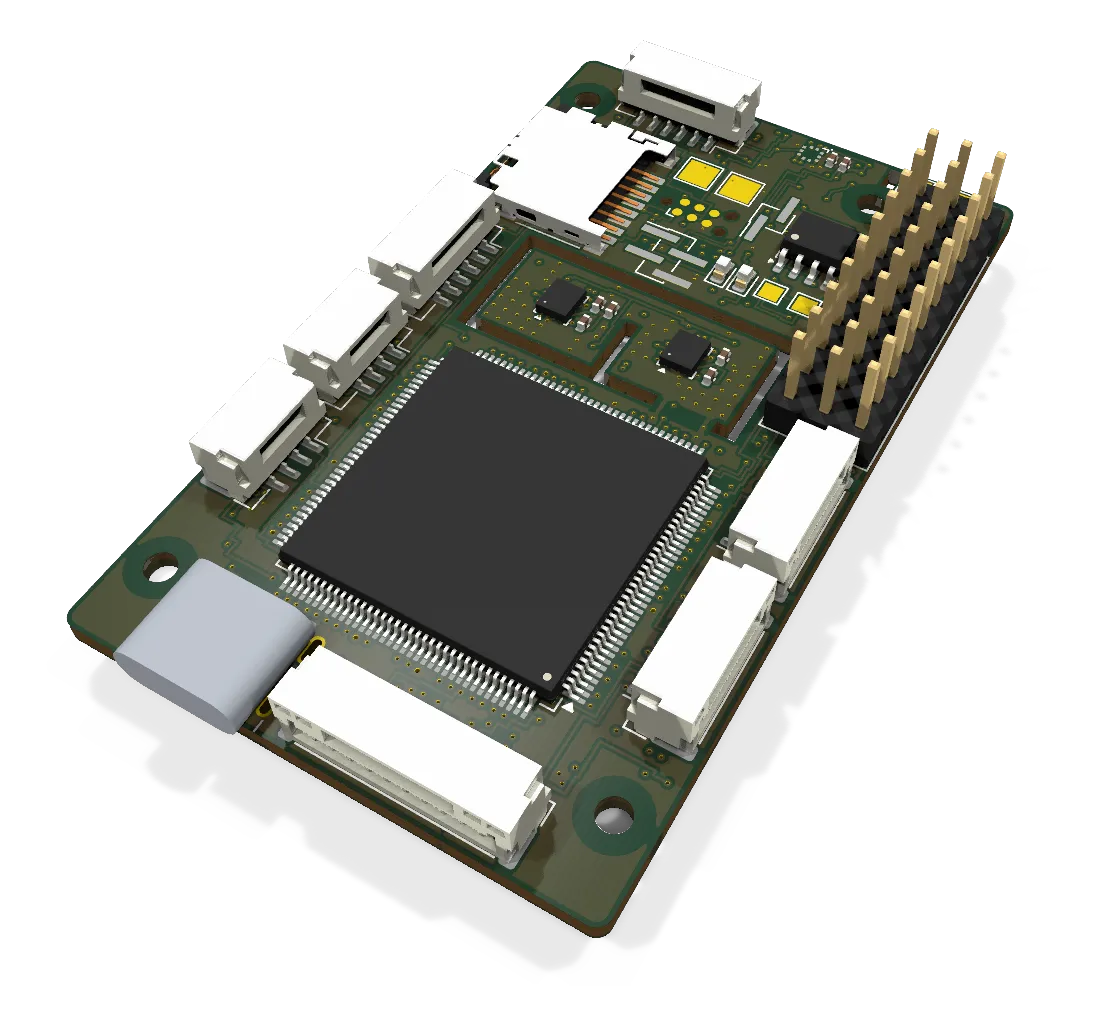

  Flight controller

  STM32H743 flight controller with two CAN buses, Pixhawk 6C Mini compatible; MCU pins from the hwdef.

  Rev A draft1 sheet192 parts38 × 64 mm, 6 layers
•

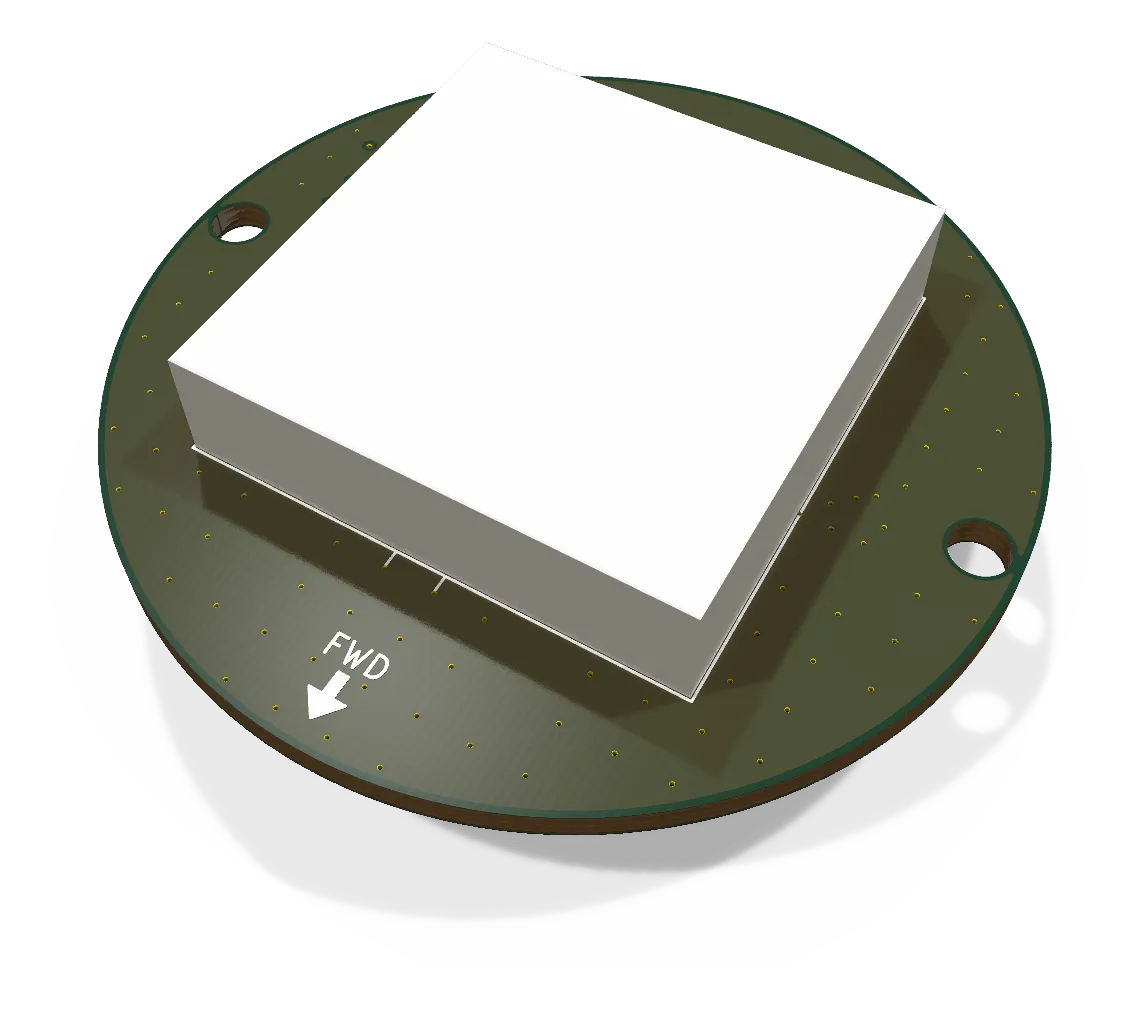

  GNSS backup module

  Q43 drop-in GNSS backup: Quectel LC29H(EA) L1/L5 RTK receiver, Taoglas 25 mm stacked patch with SAW and LNA, QMC5883P compass, GH-8 UART and I2C, in the Q43's envelope and seat.

  Rev A draft1 sheet50 parts44 × 44 mm, 4 layers
•

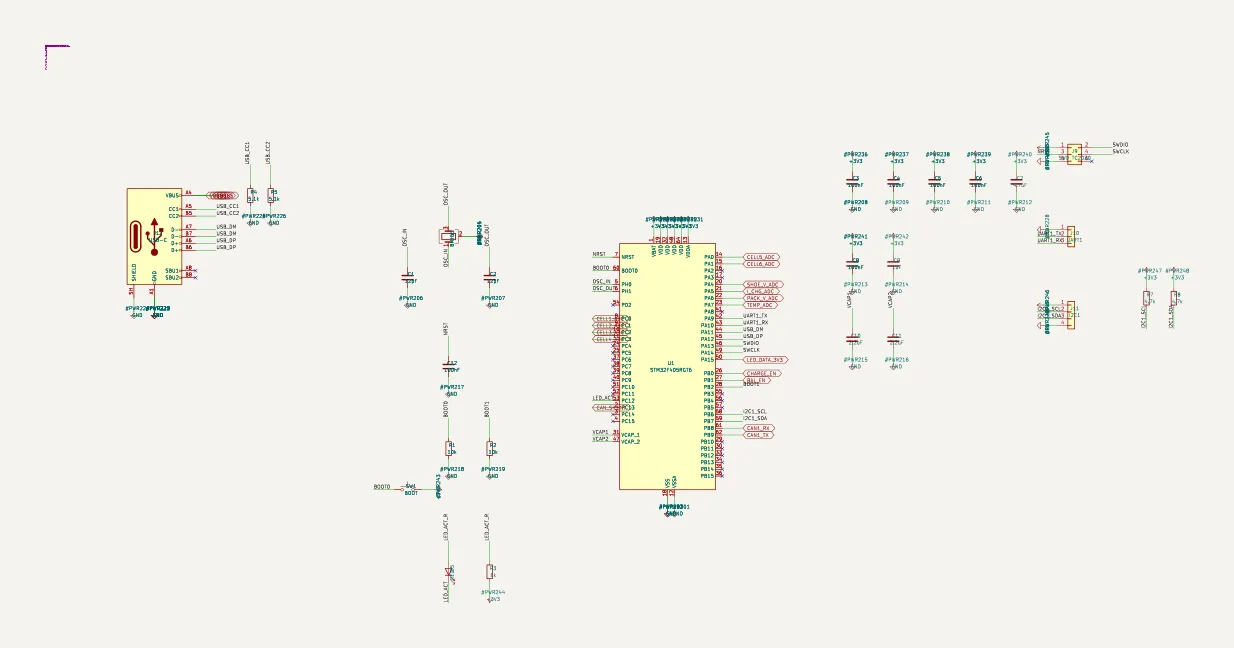

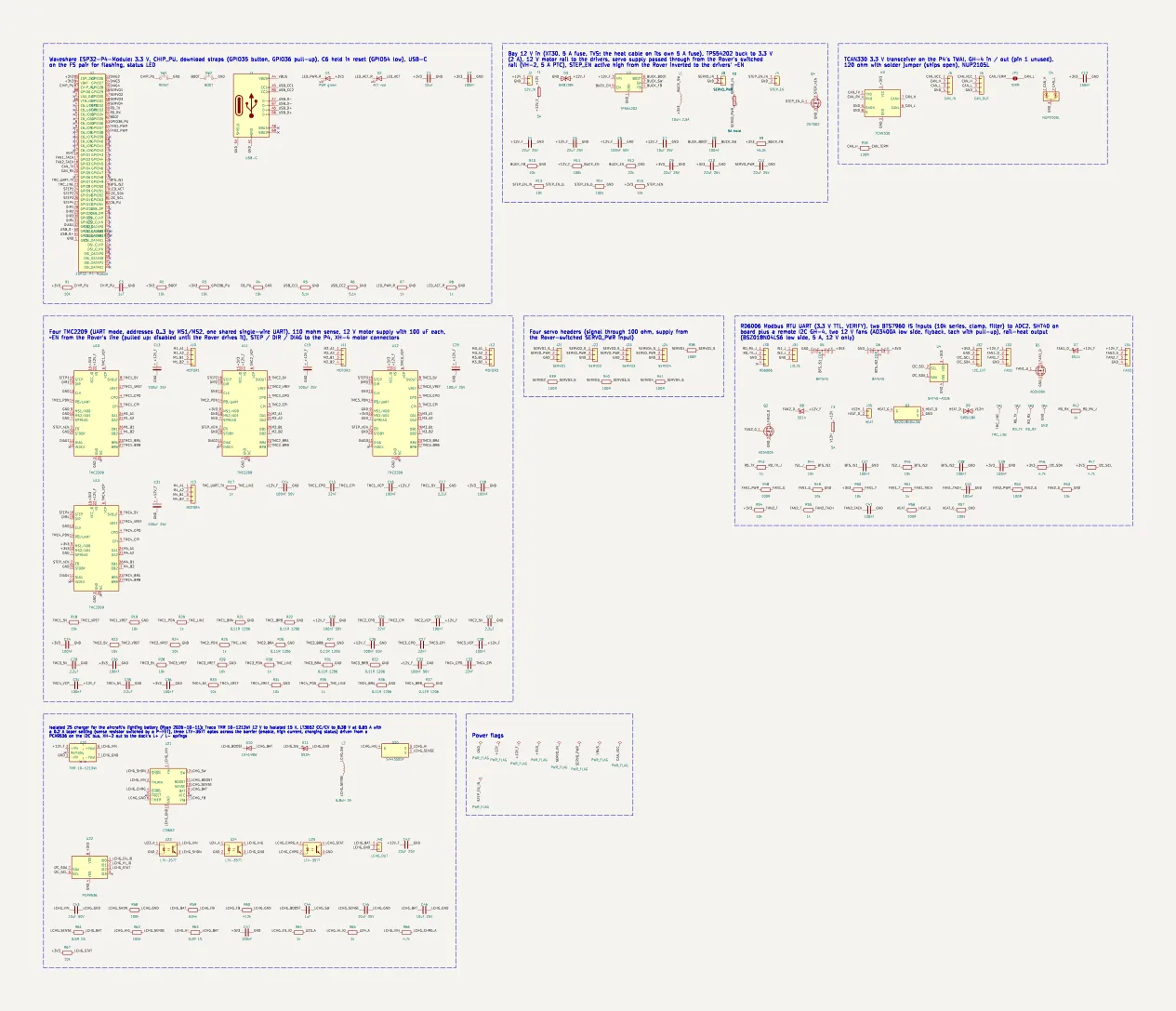

  Hangar I/O board

  ESP32-P4-Module, DroneCAN

  Rev A draft1 sheet177 partsNo layout yet
•

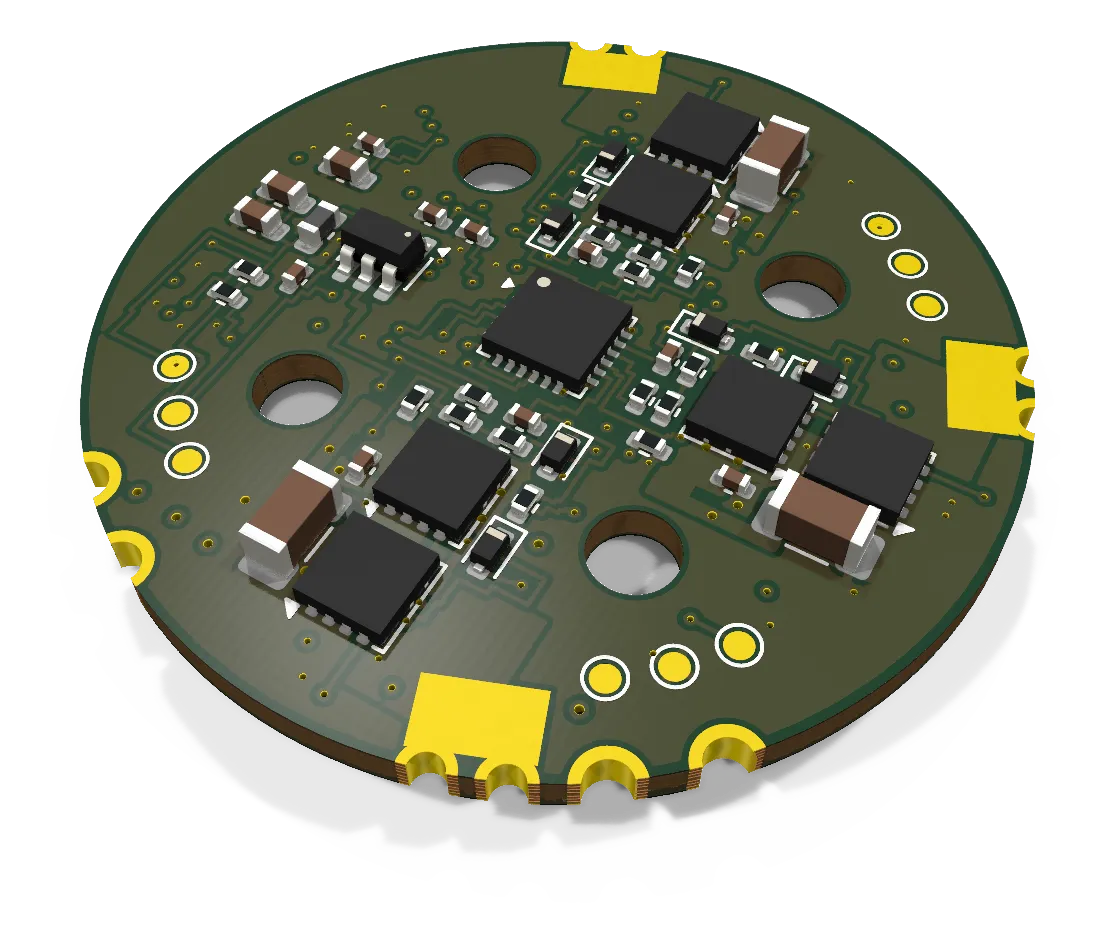

  Lift ESC, round under-motor

  Round single-channel DroneCAN ESC under each lift motor (STM32L431, AM32, 6S), with castellated wire tabs.

  Rev A draft1 sheet103 parts34 × 34 mm, 8 layers
•

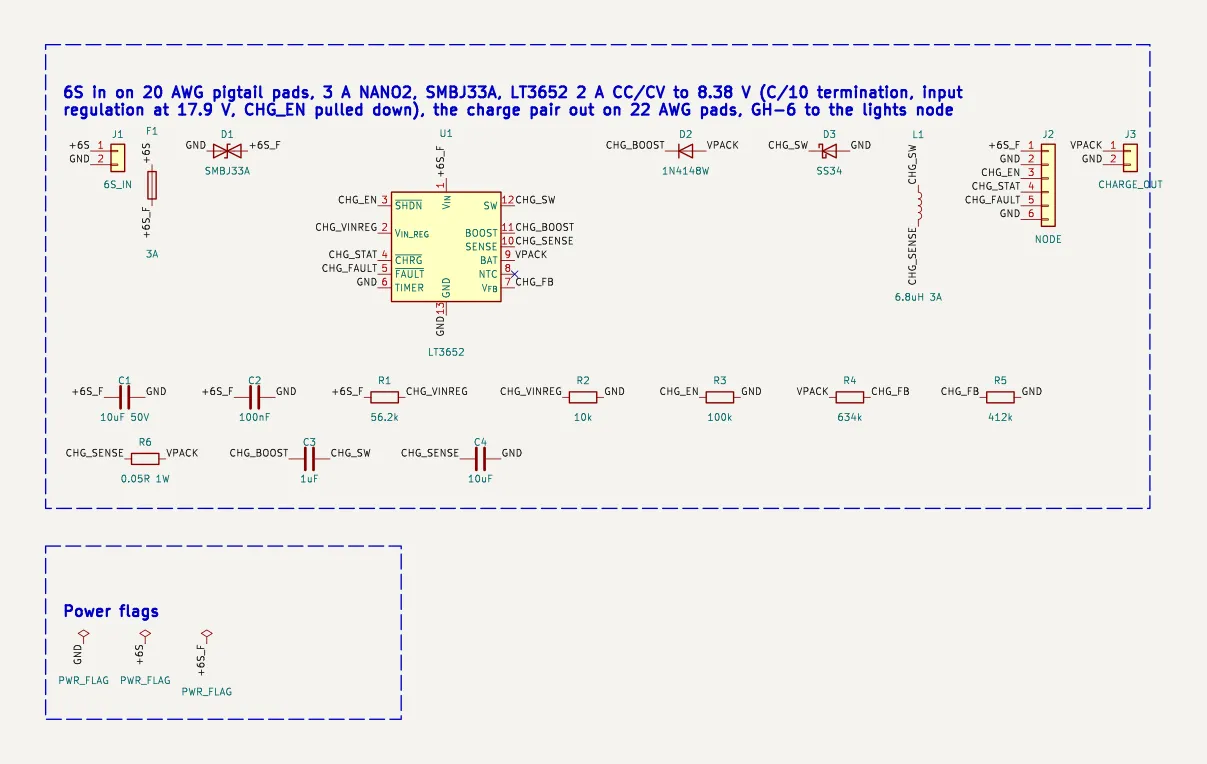

  Lights charger

  6S to the 2S lighting battery, LT3652 2 A CC/CV

  Rev A draft1 sheet19 partsNo layout yet
•

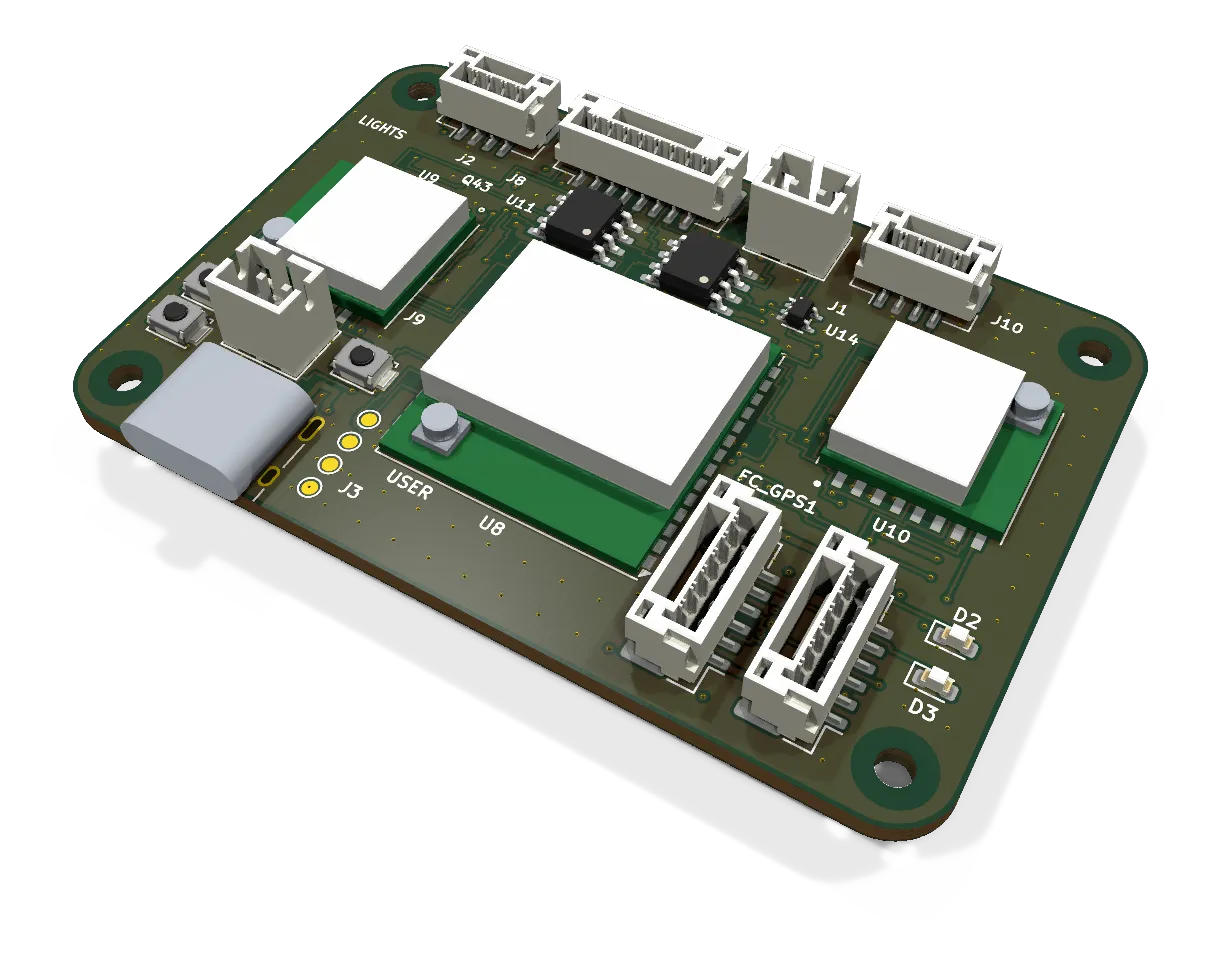

  Lights node

  DroneCAN, 2S lighting battery

  Rev A draft1 sheet226 parts55 × 40 mm, 4 layers
•

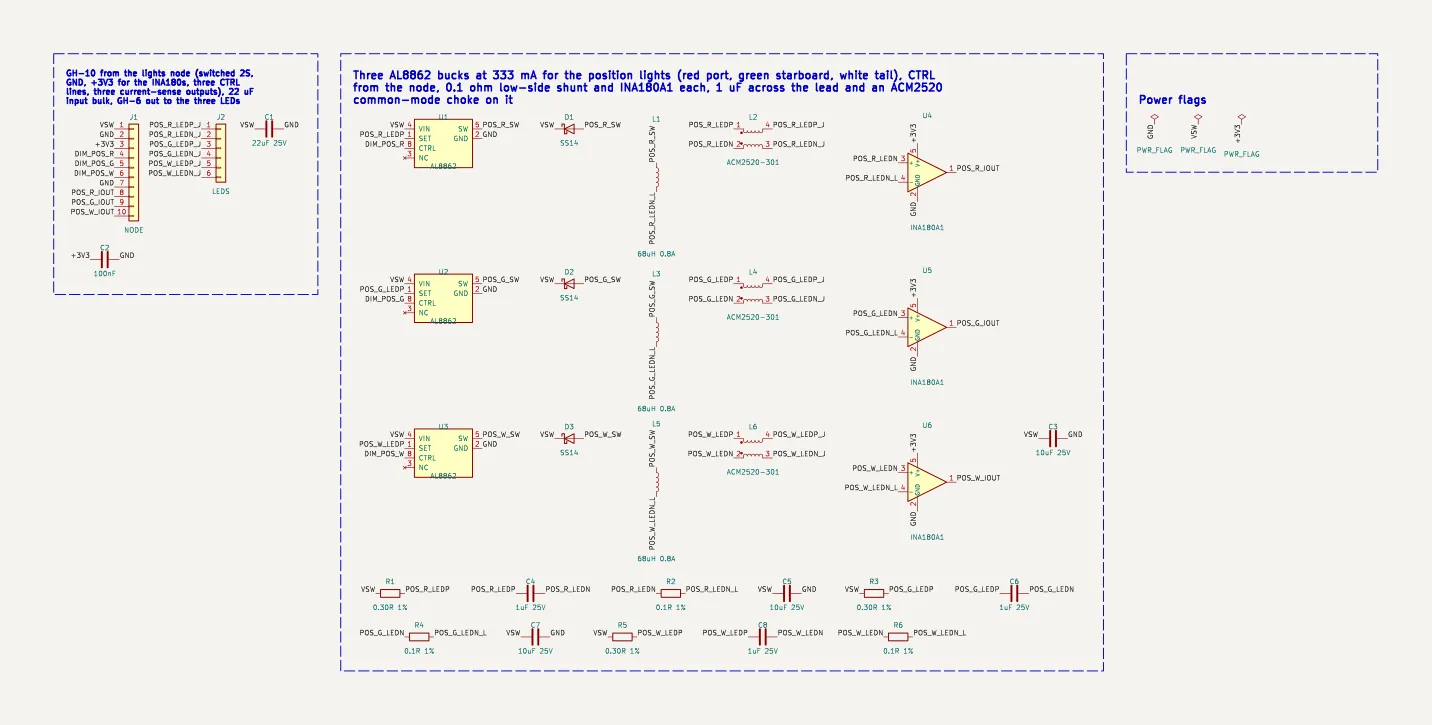

  Position-light driver

  three AL8862 channels for the wing tips and the tail

  Rev A draft1 sheet31 partsNo layout yet
•

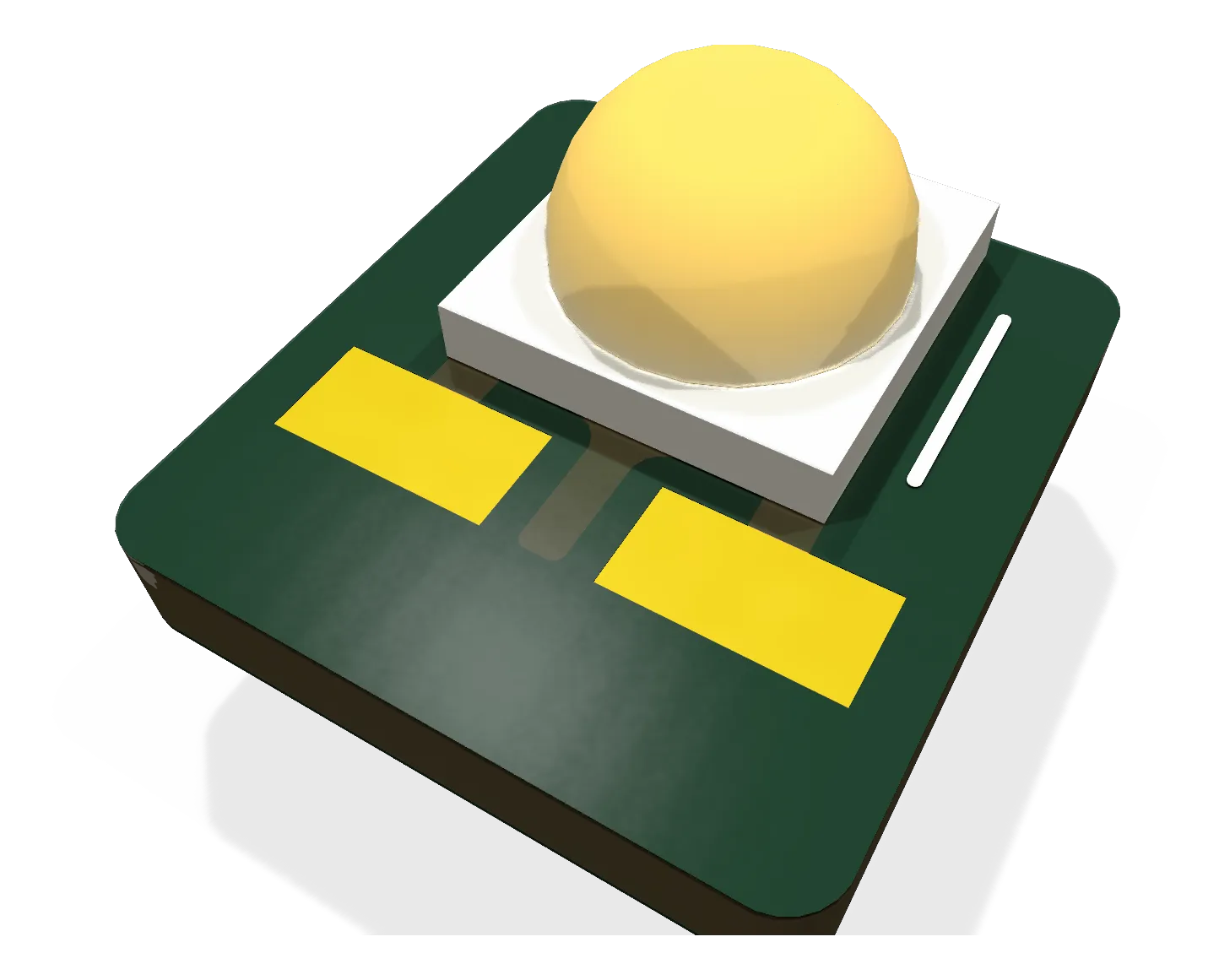

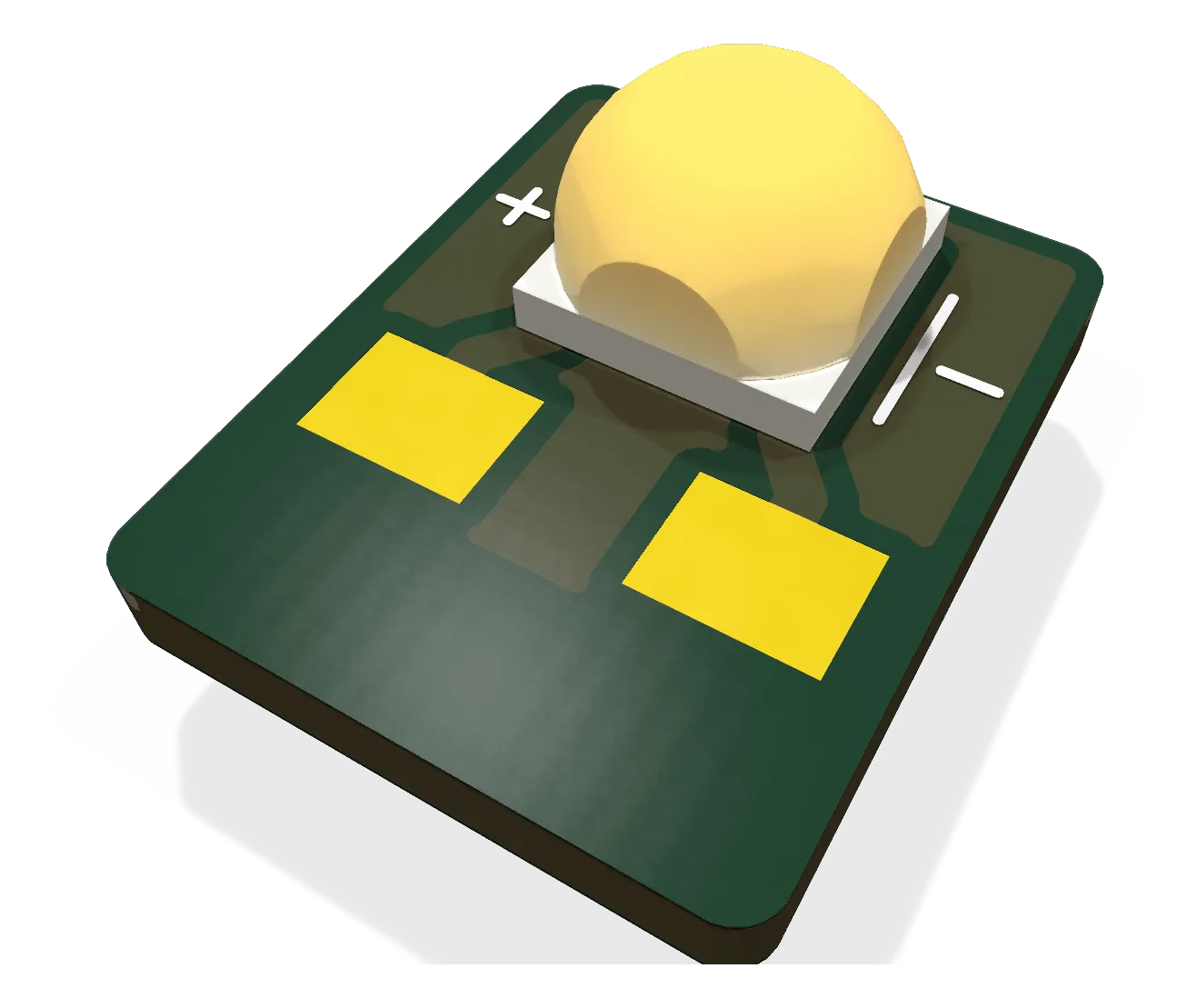

  Position-light tab

  bare Cree XP-E2 on a vertical aluminium tab

  Rev A draft1 sheet3 parts6 × 6.5 mm, 2 layers
•

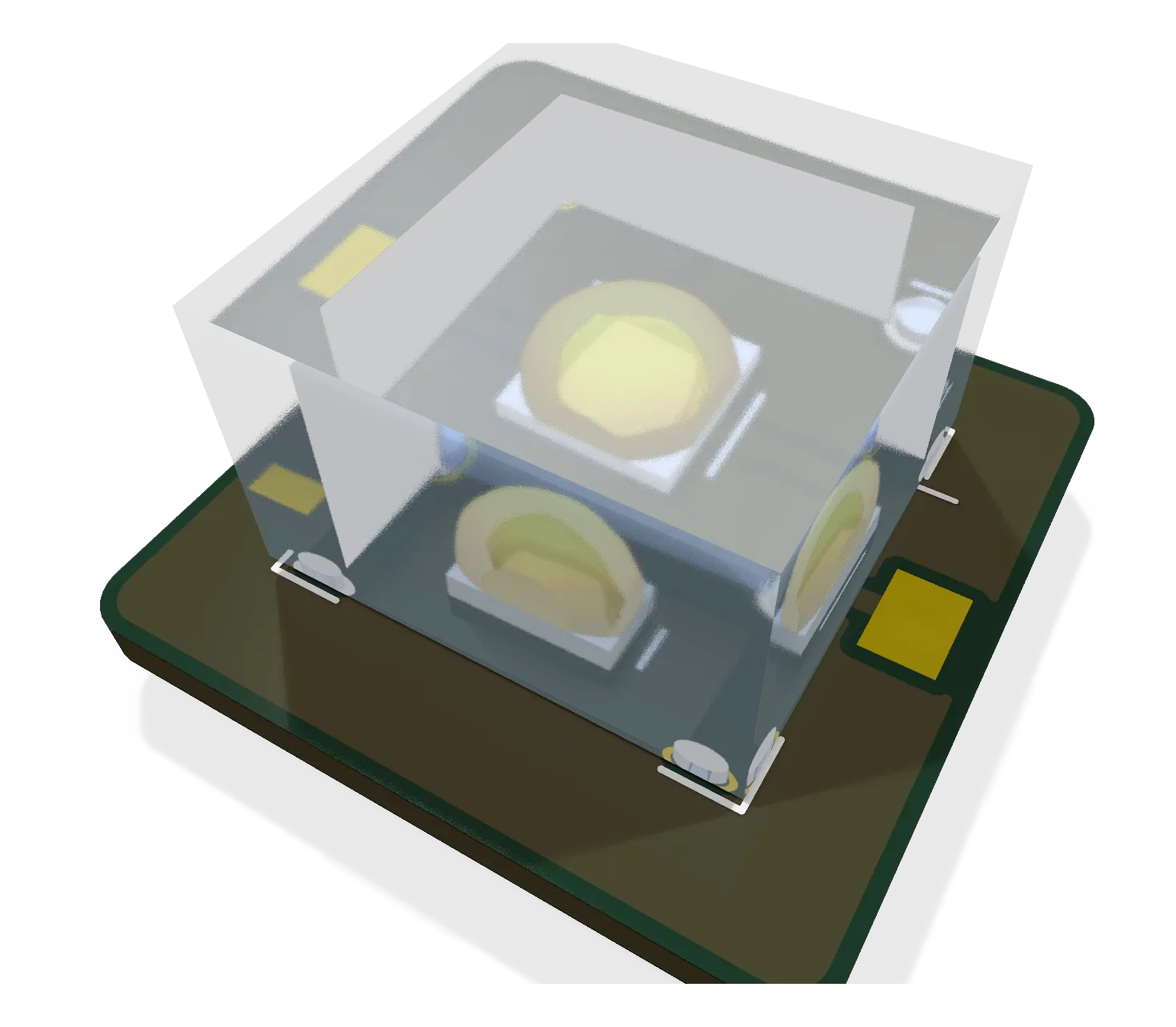

  Strobe facet

  Cree XP-L on aluminium under a Carclo 10415

  Rev A draft1 sheet3 parts15 × 15 mm, 2 layers
•

  Strobe tab

  bare Cree XP-L on a vertical aluminium tab

  Rev A draft1 sheet3 parts7 × 8.8 mm, 2 layers
